UPD78C10ACW

Product Summary

The UPD78C10ACW is a CMOS 8-bit microprocessor which can integrate 16-bit ALU, ROM, RAM, an A/D converter, a multi-function timer/event counter, and a general-purpose serial interface into a single chip, then expand the memory (ROM/RAM) up to 60K bytes externally. The UPD78C10ACW is a ROM-less product of the UPD78C11A, and can directly address the external memory up to 64k bytes. The UPD78C10ACW is a product which has more built-in ROM capacity than the mPD78C11A, and its memory (ROM/RAM) can be externally extended up to 56K bytes. The UPD78C10ACW operates at low power consumption, because it has a CMOS construction. Also, it can hold data with low power consumption by using standby function.

Parametrics

UPD78C10ACW absolute maximum ratings: (1)VDD: -0.5 to +7.0 V; (2)Power supply voltage AVDD: AVSS to VDD +0.5 V; (3)AVSS: -0.5 to +0.5 V; (4)Input voltage, VI: -0.5 to VDD +0.5 V; (5)Output voltage, VO: -0.5 to VDD +0.5 V; (6)Output current low, IOL, All output pins: 4.0 mA; Total of all output pins: 100 mA; (7)Output current high, IOH: All output pins -2.0 mA; Total of all output pins: -50 mA; (8)A/D converter reference input voltage, VAREF: -0.5 to AVDD +0.3V; (9)Operating ambient temperature, TA: -40 to +85℃; (10)Storage temperature, Tstg: -65 to +150℃.

Features

UPD78C10ACW features: (1)Abundant 159 types of instructions: 87AD series instruction set, multiplication/division instructions, 16-bit operation instructions; (2)Instruction cycle: 0.8 ms (at 15 MHz operation); (3)On-chip ROM: 4096W × 8 (mPD78C11A), 8192W × 8 (mPD78C12A) Non (mPD78C10A); (4)On-chip RAM: 256W × 8; (5)High-precision 8-bit A/D converter: 8 analog inputs; (6)General-purpose serial interface: Asynchronous, synchronous, I/O interface mode; (7)Multi-function 16-bit timer/event counter; (8)Two 8-bit timers; (9)I/O lines: 32 (mPD78C10A), 44 (mPD78C11A, 78C12A); (10)Interrupt function (external - 3, internal - 8): Non-maskable interrupt × 1, maskable interrupt × 10; (11)Standby function : HALT mode, hardware/software STOP mode; (12)Zero-cross detection function: (2 inputs); (13)On-chip pull-up resistor (port A, B, C: mPD78C11A, 78C12A only) by mask option.

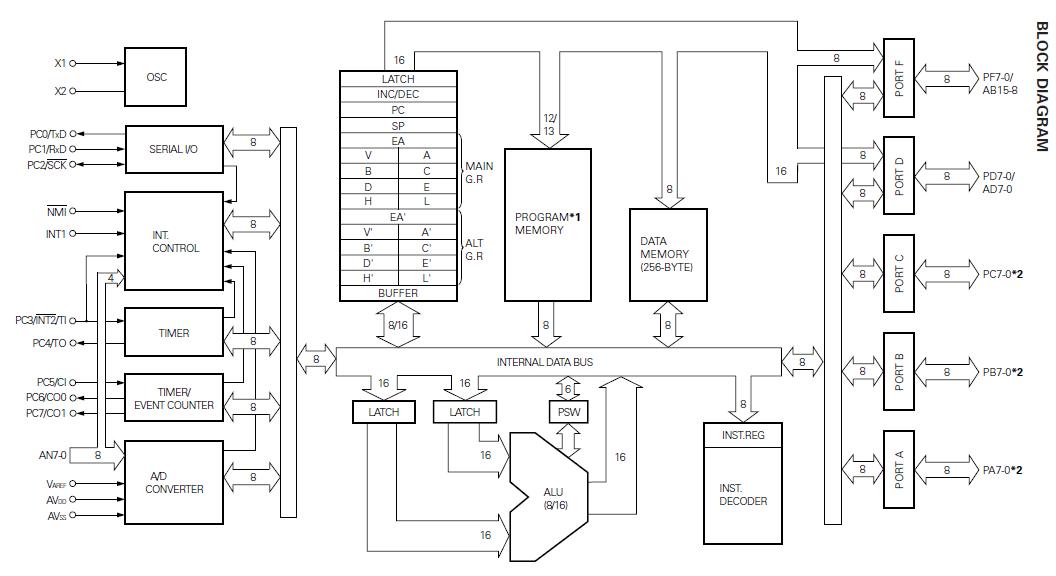

Diagrams
