Product Summary
The BA6289F-E2 is a reversible-motor driver, with an output current of 600mA for the former and 1A for the latter. Two logic inputs allow four output modes: forward, reverse, stop (idling), and brake. A built-in power saving circuit suppresses current consumption when the motor is in stop mode. The applications of the BA6289F-E2 include Compact, low-current DC motors and portable equipment such as camcorders.
Parametrics
BA6289F-E2 absolute maximum ratings: (1)Applied voltage, VCC: 18V; (2)Power dissipation, PD: 650mW; (3)Operating temperature, TOPR: -20 to +75℃; (4)Storage temperature, Tstg: -55 to +150℃; (5)Output current, IOUT: 600mA.
Features
BA6289F-E2 features: (1)Two logic inputs allow four output modes: forward, reverse, stop (idling), and brake; (2)Built-in power saving circuit suppresses the stop mode current dissipation; (3)Output voltage can be set arbitrarily with the Vref pin; (4)Interfaces with TTL devices; (5)Built-in thermal shutdown circuit turns off all circuits when high IC junction temperature is detected.

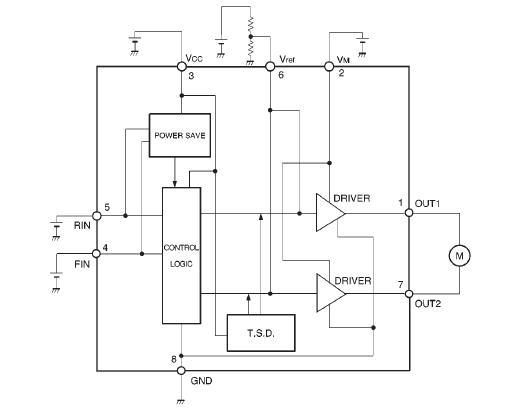

Diagrams
