The EP82562G is a 14 Pin DIP TTL Square-Wave Generator.
Parametrics
EP82562G absolute maximum ratings: (1)Supply Voltage, VCC: 4.75 to 5.25 V; (2)High-Level Input Voltage, VIH: 2.0 V; (3)Low-Level Input Voltage, VIL: 0.8 V; (4)Input Clamp Current, IIK: -18 mA; (5)High-Level Output Current, IOH: -1.0 mA; (6)Low-Level Output Current, IOL: 20 mA; (7)Duty Cycle, d: 45 to 55 %; (8)Operating Free-Air Temperature, TA: 0 to +70℃.
Features
EP82562G features: (1)Output frequencies from 2 to 100 MHz ±5%; (2)Operating temperature range 0 to 70℃; (3)Schottky TTL; (4)50% duty cycle; (5)Inherent Delay 4nS Typ; (6)Output synchronized using enable line; (7)Low Profile 14 pin dual-in-line package.

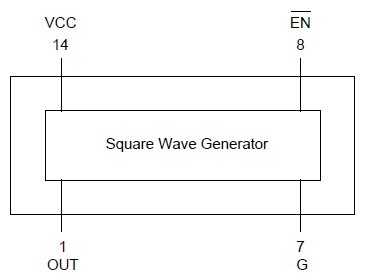

Diagrams
 |
