Product Summary

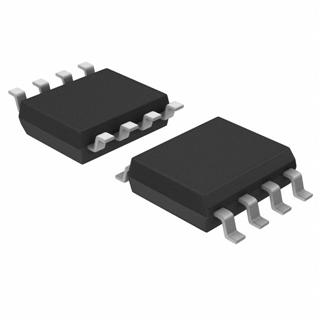

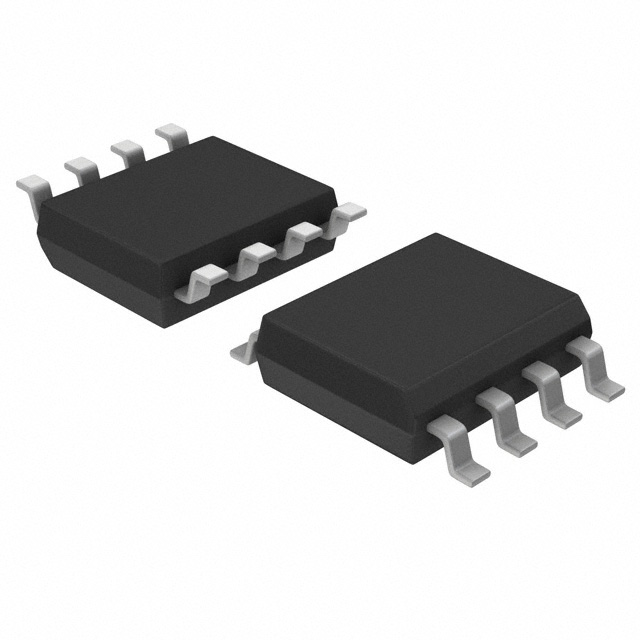

The BA4560F-E2 is a dual operational amplifier which achieves approximately twice the high output current of the BA4558, as well as featuring a higher slew rate of 4V / ms, a gain band width of 10MHz, and an improved frequency characteristic. The following packages are available: 8-pin SOP (BA4560F-E2). The applications of the BA4560F-E2 include Active filters, Audio amplifiers, VCOs, Other electronic circuits.
Parametrics
BA4560F-E2 absolute maximum ratings: (1)Power supply voltage, VCC: ± 18 V; (2)Power dissipation: 900 mW; (3)Differential input voltage, VID: ± VCC V; (4)Common-mode input voltage, VI: -Vcc to +Vcc V; (5)Operating temperature, Topr: -40 to +85℃; (6)Storage temperature, Tstg: -55 to +125℃.
Features
BA4560F-E2 features: (1)Built-in output short-circuit protection circuit; (2)Internal phase correction; (3)No latch-up; (4)Wide range of common-mode modes and differential voltage; (5)High gain and low noise.

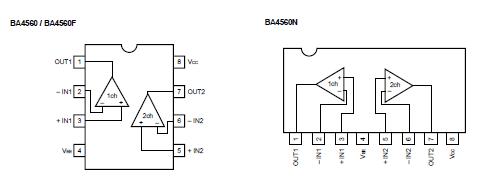

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BA4560F-E2 |
![]() ROHM Semiconductor |
![]() Operational Amplifiers - Op Amps OP-AMP GENERIC 4560 DUAL 8 PIN |
![]() Data Sheet |
![]()
|
|
||||||||||||
