Product Summary

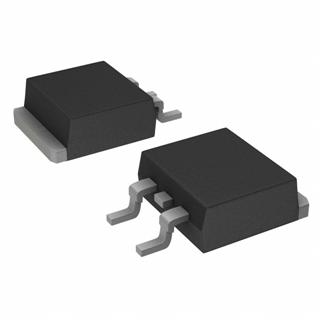

The BD3930FP-E2 is a reference voltage regulator.
Parametrics
BD3930FP-E2 absolute maximum ratings: (1)Positive supply voltage: 36V; (2)Negative supply voltage: -15V; (3)power dissipation: 1.2W; (4)operating temperature range: -40 to 125℃; (5)storage temperature range: -55 to 150℃; (6)peak supply voltage: 50*3V; (7)Maximum junction temperature: 150℃.
Features
BD3930FP-E2 features: (1)High output voltage precision: 3.3V±2%(Ta=25℃)/Low dropout voltage/Low quiescent currnet: 30μA; (2)Built in overcurrent protection circuit/ Thermal shutdown circuit/ overvoltage protection cirvuit/ reverse polarity circuit.

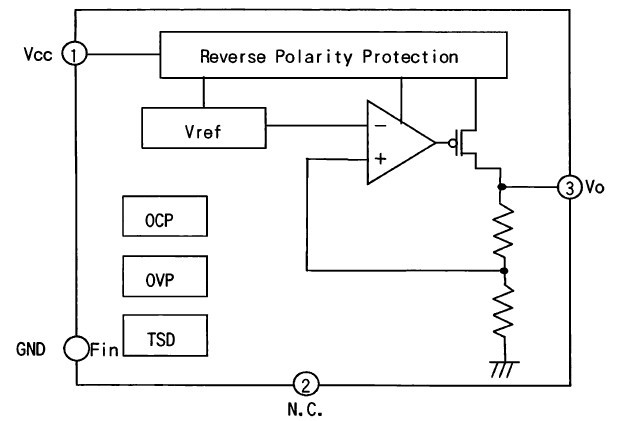

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
BD3930FP-E2 |
ROHM Semiconductor |
Voltage & Current References HIGH VOLT LOW QUIESCENT CUR |
Data Sheet |
|
|
|||||||
