Product Summary

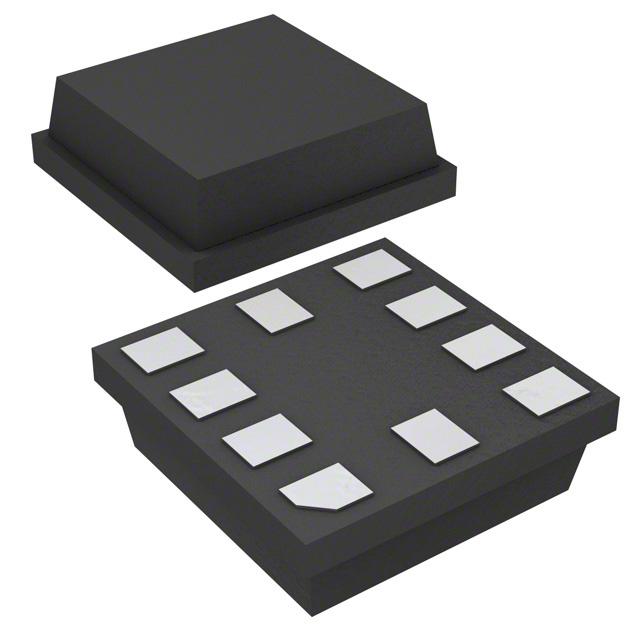

The BH1772GLC-E2 is an Ambient Light Sensor IC into which optical proximity sensor and digital ambient light senor are unified. Proximity sensor part detects the human or object approach by reflection of infrared LED(IrLED) light. Ambient light sensor part can detect the wide range illuminance from the dark up to under direct sun light. The illuminant intensity of LCD display and keypad can be adjusted, so lower current consumption or higher visibility are possible. The applications of the BH1772GLC-E2 include Mobile phone, DSC, Portable game, Camcoder, Car navigation, PDA, LCD display etc.

Parametrics

BH1772GLC-E2 absolute maximum ratings: (1)VCC, Supply Voltage, Vccmax: 4.5 V; (2)SDA,SCL,GNDNC Terminal Voltage, VSDAmax, VSCLmax, VGNDNCmax: 4.5 V; (3)LEDC,INT Terminal Voltage, VLEDCmax, VINTmax: 7 V; (4)Operating Temperature, Topr: -40～85 ℃; (5)Storage Temperature, Tstg: -40～100 ℃; (6)SDA, INT Sink Current, Imax: 7 mA; (7)Power Dissipation, Pd: 250 mW.

Features

BH1772GLC-E2 features: (1)Correspond to I2C bus interface ( f/s mode & Hs mode support ); (2)Low Current by power down function; (3)Correspond to 1.8V logic interface; (4)ALS spectral responsibility is approximately human eye response ( Peak wavelength : typ. 550nm ); (5)Correspond to wide range of light intensity ( 1-65535 lx range ); (6)Rejecting 50Hz/60Hz light noise (ALS function); (7)Detection range of proximity sensor is around 10 - 100mm (configurable by I2C bus); (8)Built in ambient light cancelation (Proximity sensor function); (9)Built in configurable IrLED current driver.

Diagrams

BH1772GLC-E2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BH1772GLC-E2
BH1772GLC-E2

IC SENSOR LIGHT AND PROXIMITY
Data Sheet
0-1: $3.29
1-25: $2.69
25-100: $2.42
100-250: $2.20
250-500: $1.92
500-1000: $1.65
