Product Summary

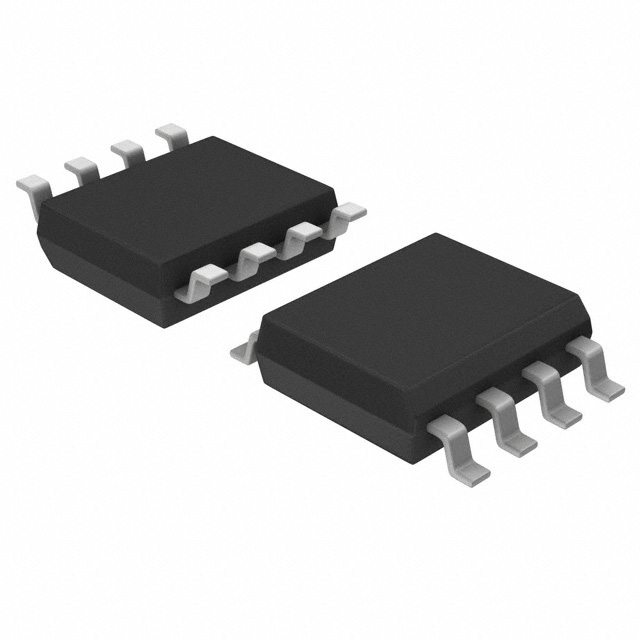

The BA4558F-E2 is a monolithic IC with two operational amplifiers featuring low power consumption and internal phase compensation mounted on a single silicon chip. The product offers high speed, a wide band width, and low noise. Outstanding thermal characteristics and voltage gain band width make these ICs ideal for use in a wide variety of electronic circuits. The BA4558F-E2 comes in an 8-pin DIP package and is compatible with the 4558 operational amplifier. The applications of the BA4558F-E2 include Active filters, Audio amplifiers, VCOs, Other electronic circuits.
Parametrics
BA4558F-E2 absolute maximum ratings: (1)Power supply voltage VCC: ± 18 V; (2)Power dissipation: 550mW; (3)Differential input voltage VID: ± 30 V; (4)Common-mode input voltage VI: ± 15 V; (5)Operating temperature Topr: -40 to + 85℃; (6)Storage temperature, TSTG: -55 to + 125℃.
Features
BA4558F-E2 features: (1)Low power dissipation of approximately 50mW (typ.); (2)Built-in output short-circuit protection circuit; (3)Internal phase compensation; (4)No latch-up; (5)Wide range of common mode and differential voltage; (6)High gain and low noise.

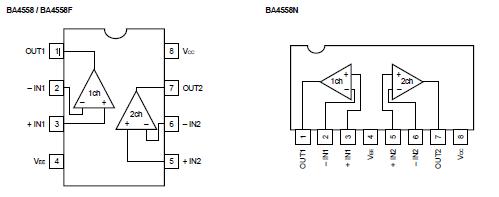

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

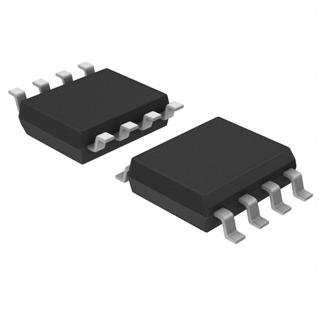

 BA4558F-E2 |
ROHM Semiconductor |
Operational Amplifiers - Op Amps OP-AMP GENERIC 4558 DUAL 8 PIN |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
BA4510F |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BA4510F-E2 |
ROHM Semiconductor |
Operational Amplifiers - Op Amps OPAMP DUAL |
Data Sheet |
|
|
||||||||||||
 |
BA4510FV-E2 |
ROHM Semiconductor |
Operational Amplifiers - Op Amps OPAMP DUAL |
Data Sheet |
|
|
||||||||||||
 |
BA4558 |
ROHM Semiconductor |
Operational Amplifiers - Op Amps OPAMP DUAL |
Data Sheet |
|
|
||||||||||||
|
BA4558F |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BA4558F-E2 |
ROHM Semiconductor |
Operational Amplifiers - Op Amps OP-AMP GENERIC 4558 DUAL 8 PIN |
Data Sheet |
|
|
||||||||||||
