Product Summary
The DTC144VKAT146 is a Digital transistor.
Parametrics
DTC144VKAT146 absolute maximum ratings: (1)Supply voltage, VCC: 50V; (2)Input voltage, VIN: -10 to +40V; (3)Output current, IO: 30mA; IC(MAX): 100mA; (4)Power dissipation, PD: 150mW; (5)Junction temperature, TJ: 150℃; (6)Storage temperature, Tstg: -55 to +150℃.
Features
DTC144VKAT146 features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2)The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input, and parasitic effects are almost completely eliminated; (3)Only the on / off conditions need to be set for operation, making device design easy; (4)Higher mounting densities can be achieved.

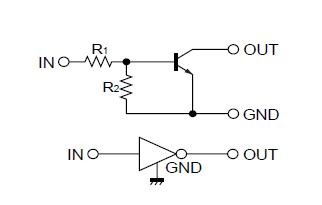

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() DTC144VKAT146 |
![]() ROHM Semiconductor |
![]() Transistors Switching (Resistor Biased) NPN 50V 30MA |
![]() Data Sheet |
![]()
|
|
||||||||||||
