Product Summary

The IRS2092STRPBF is a high voltage, high performance Class D audio amplifier driver with PWM modulator and protection. In conjunction with two external MOSFET and a few external components, the IRS2092STRPBF with protection can be realized. International Rectifier’s proprietary noise isolation technology allows high current gate drive stage and high speed low noise error amplifier reside on a single small silicon die. Open elements of PWM modulator section allow flexible PWM topology implementation. The applications of the IRS2092STRPBF include Home theater systems, Mini component stereo systems, Powered speaker systems, General purpose audio power amplifiers.

Parametrics

IRS2092STRPBF absolute maximum ratings: (1)High side floating supply voltage, VB: -0.3 to 220V; (2)High side floating supply voltage, VS: VB -20 to VB +0.3V; (3)High side floating output voltage, VHO: VS -0.3 to VB +0.3V; (4)CSH pin input voltage, VCSH: VS -0.3 to VB +0.3V; (5)Low side fixed supply voltage, VCC: -0.3 to 20V; (6)Low side output voltage, VLO: -0.3 to Vcc+0.3V; (7)Floating input positive supply voltage, VAA: 210V; (8)Floating input negative supply voltage, VSS: -1 to GND +0.3V; (9)Floating input supply ground voltage, VGND: VSS -0.3 to VAA +0.3V; (10)Inverting input current, IIN-: ±3 mA; (11)SD pin input voltage, VCSD: VSS -0.3 to VAA +0.3V; (12)COMP pin input voltage, VCOMP: VSS -0.3 to VAA +0.3V; (13)DT pin input voltage, VDT: -0.3 to VCC +0.3V; (14)OCSET pin input voltage, VOCSET: -0.3 to VCC+0.3V; (15)Floating input positive supply zener clamp current, IAAZ: 20mA; (16)Floating input negative supply zener clamp current, ISSZ: 20mA; (17)Low side supply zener clamp current, ICCZ: 10mA; (18)Floating supply zener clamp current, IBSZ: 10mA; (19)Reference output current, IOREF: 5mA; (20)Allowable Vs voltage slew rate, dVS/dt: 50 V/ns; (21)Allowable Vss voltage slew rate, dVSS/dt: 50 V/ms; (22)Pd Maximum power dissipation @ TA ≤ +25℃, SOIC16N: 1.0W; DIP16: 1.6W; (23)RthJA Thermal resistance, Junction to ambient, SOIC16N: 115℃/W; (24)DIP16: 75℃/W; (25)Junction Temperature, TJ: 150℃; (26)Storage Temperature, TS: -55 to 150℃; (27)Lead temperature (soldering, 10 seconds), TL: 300℃.

Features

IRS2092STRPBF features: (1)Integrated analog input Class D audio amplifier driver in a small 16 pin package; (2)Floating inputs enable easy half bridge implementation; (3)Programmable bidirectional over-current protection with self-reset function; (4)Programmable preset deadtime for improved THD performances; (5)Start and stop click noise reduction; (6)High noise immunity; (7)±100 V ratings deliver up to 500 W in output power; (8)Operates up to 800 kHz; (9)RoHS compliant.

Diagrams

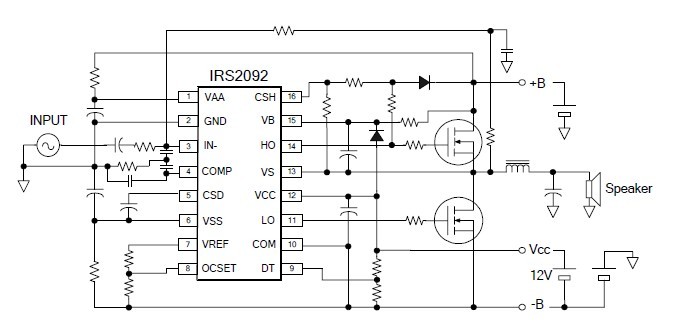

IRS2092STRPBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRS2092STRPBF
IRS2092STRPBF

International Rectifier

Power Driver ICs 200V Dig Aud Drvr

Data Sheet

0-1: $3.05
1-25: $1.79
25-100: $1.42
100-250: $1.33
