Product Summary
The BA6406F-E2 is a 2-phase, half-wave motor predriver suited for fan motors.
Parametrics
BA6406F-E2 absolute maximum ratings: (1)Applied voltage, VCC: 30V; (2)Power dissipation, PD: 550mW; (3)Operating temperature, Topr: -30 to +75℃; (4)Storage temperature, Tstg: -55 to +125℃; (5)Output current, IO: 70mA.
Features

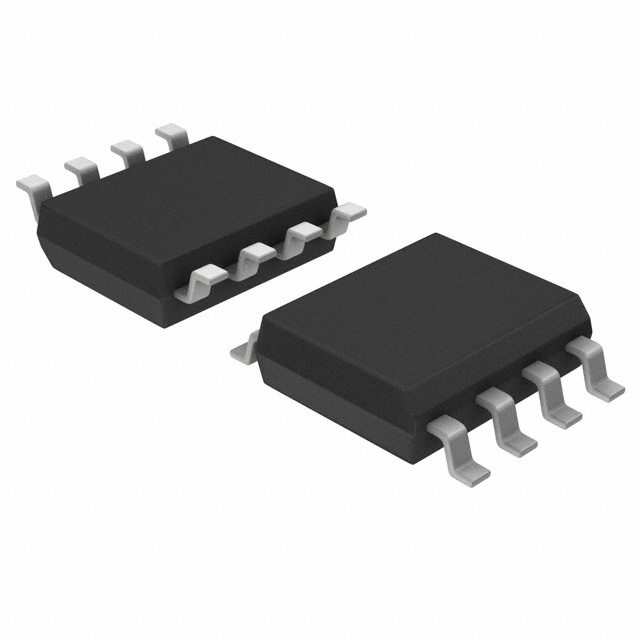

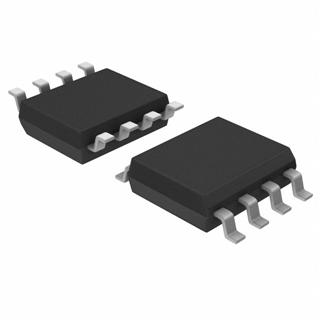

BA6406F-E2 features: (1)Lock detection and rotational speed sensing mechanisms are built in; (2)Compact 8-pin SOP package reduces the number of external components required; (3)Automatic restart when the motor lock is undone; (4)Hall inputs have a hysteresis.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA6406F-E2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers WAVE FAN MOTOR DRVR 2PHASE 8PIN |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
BA6406F-E2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers WAVE FAN MOTOR DRVR 2PHASE 8PIN |
Data Sheet |
|
|
||||||
|
