Product Summary
The RPM841-H11E2A is an infrared communication module for IrDA Ver. 1.2 (Low Power). The infrared LED, PIN photo diode, LSI are all integrated into a single package. This module is designed with power down function and low current consumption at stand-by mode. The ultra small package makes it a perfect fit for mobile devices. The applications of the RPM841-H11E2A include Mobile phone, PDA, DVC, Digital Still Camera, Printer, Handy Terminal etc.
Parametrics
RPM841-H11E2A absolute maximum ratings: (1)Supply voltage, Vmax: 7.0 V; (2)Input voltage, Vin: -0.3 to VCC +0.3V; (3)Operation temperature, Topr: -30 to +85℃; (4)Storage temperature, Tstg: -40 to +100℃.
Features
RPM841-H11E2A features: (1)Infrared LED, PIN photo diode, LED driver & Receiver frequency formation circuit built in. Improvement of EMI noise protection because of Shield Case; (2)Applied to SIR (2.4 to 115.2kbps); (3)Surface mount type; (4)Power down function built in; (5)Super small package (W=6.8mm, D=2.44mm, H=1.5mm); (6)Infrared remote control transmission driver built-in.

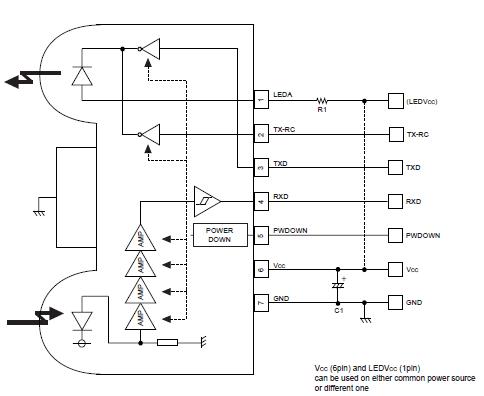

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RPM841-H11E2A |
ROHM Semiconductor |
Fiber Optic Transmitters, Receivers, Transceivers IRDA IR COMM SIDE VIEW W/SHIELD |
Data Sheet |
|
|
||||||
