Product Summary

The TPD4123AK(Q) is a DC brush less motor driver using high voltage PWM control. The TPD4123AK(Q) is fabricated by high voltage SOI process. The TPD4123AK(Q) is three-shunt resistor circuit for current sensing. The TPD4123AK(Q)contains level shift high-side driver, low-side driver, IGBT outputs, FRDs and protective functions for under voltage protection circuits and thermal shutdown circuit.

Parametrics

TPD4123AK(Q) absolute maximum ratings: (1) Power supply voltage VBB: 500V, Vcc: 18V; (3) Output current (DC) IOUT: 1A; (3) Output current (pulse) IOUTp: 2A; (4) Input voltage VIN: -0.5 to 7V; (5) VREG current, IREG: 50mA; (6) Operating temperature Tjopr: -45 to 135°C; (7) Junction temperature Tj: 150; (8) Storage temperature Tstg: -55 to 150°C.

Features

TPD4123AK(Q) features: (1) High voltage power side and low voltage signal side terminal are separated; (2) It is the best for current sensing in three shunt resistance; (3) Bootstrap circuit gives simple high-side supply; (4) Bootstrap diodes are built in; (5) A dead time can be set as a minimum of 1.4s, and it is the best for a Sine-wave from drive; (6) 3-phase bridge output using IGBTs; (7) FRDs are built in; (8) Included under voltage protection and thermal shutdown; (9) The regulator of 7V (typ.) is built in; (10) Package: 26-pin DIP.

Diagrams

TPD4123AK(Q) Pin Assignment

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

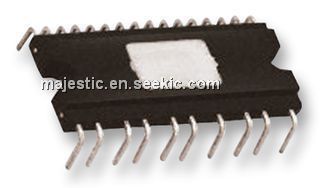

TPD4123AK(Q)
TPD4123AK(Q)

IC SGL CHIP INV 500V 1A 26-DIP
Data Sheet
Negotiable
