Product Summary

The RPM-075PTT86 is a Quite new phototransistor which peak sensitivity is designed as same level as human eye. Best sensor to detect illuminance. (Peak sensitivity is 600nm.) Small and light weight package which can be used for reflow soldering and Pd free soldering. The applications of the RPM-075PTT86 include Control of lighting cellular phones, LCD displays, etc. and Control of strobe. (DSC, camcorder, etc.).

Parametrics

RPM-075PTT86 absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 20V; (2)Emitter-collector voltage, VECO: 5V; (3)Collector current, IC: 10mA; (4)Collector power dissipation, PC: 50mW; (5)Operating temperature, Topr: -30 to 85℃; (6)Storage temperature, Tstg: -40 to 100℃.

Features

RPM-075PTT86 features: (1)Best sensor to detect illuminance. (Peak sensitivity is 600nm.); (2)Small (2125) and light weight package (3mg) which can be used for reflow soldering and Pd free soldering; (3)Linear against wide range of illuminance from a few Lx to 10000Lx over; (4)Use Si good for an environ ment. (not CdS).

Diagrams

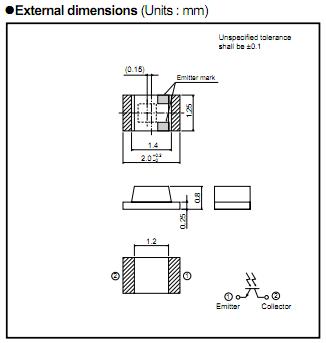

RPM-075PTT86 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RPM-075PTT86
RPM-075PTT86

ROHM Semiconductor

Photodetector Transistors PHOTO LINK MODULE

Data Sheet

0-1: $0.43
1-25: $0.38
25-100: $0.30
100-500: $0.24
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RPM-012PB
RPM-012PB

Other


Data Sheet

Negotiable
RPM-012PBT87
RPM-012PBT87

ROHM Semiconductor

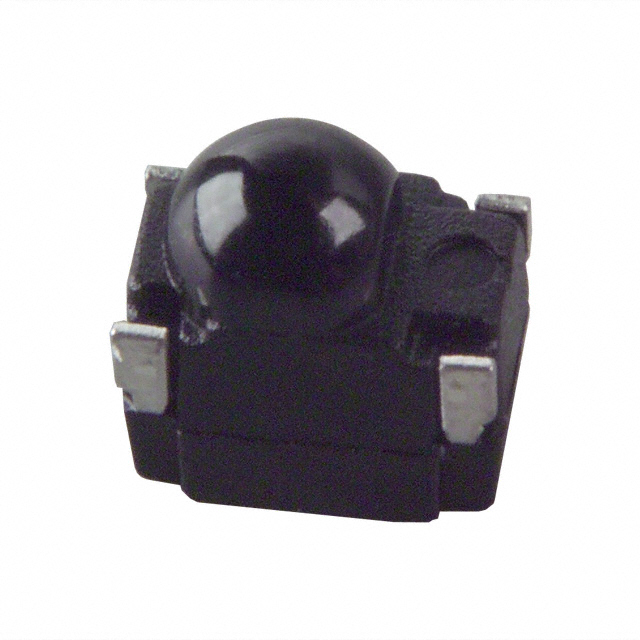

Photodetector Transistors SMD IR RECEIVER SIDE VIEW

Data Sheet

0-1: $0.62
1-25: $0.47
25-100: $0.35
100-500: $0.26
500-1000: $0.22
RPM-012PBT87F
RPM-012PBT87F

Rohm Semiconductor(VA)

PHOTOTRANSISTOR NPN 800NM SMD

Data Sheet

1-10: $0.37
10-100: $0.26
100-250: $0.21
250-500: $0.20
RPM-012PBT97
RPM-012PBT97

ROHM Semiconductor

Photodetector Transistors SMD Side View Phototransistor

Data Sheet

0-1: $0.62
1-25: $0.35
25-100: $0.26
100-250: $0.24
RPM-012PBT97F
RPM-012PBT97F


PHOTOTRANSISTOR NPN 800NM SMD

Data Sheet

0-1: $0.53
1-25: $0.41
25-100: $0.36
100-250: $0.31
250-500: $0.26
500-1000: $0.21
RPM-075PT
RPM-075PT

Other


Data Sheet

Negotiable
