Product Summary

The DTC124EUAT106 is a Digital transistor.

Parametrics

DTC124EUAT106 absolute maximum ratings: (1)Supply voltage, VCC: 50V; (2)Input voltage, VIN: -10 to +40V; (3)Output current, IO: 30mA; IC(MAX): 100mA; (4)Power dissipation, PD: 150mW; (5)Junction temperature, TJ: 150℃; (6)Storage temperature, Tstg: -55 to +150℃.

Features

DTC124EUAT106 features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thinfilm resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation, making device design easy.

Diagrams

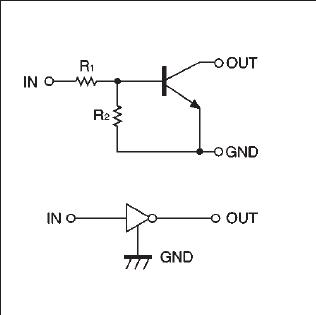

DTC124EUAT106 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DTC124EUAT106
DTC124EUAT106

ROHM Semiconductor

Transistors Switching (Resistor Biased) NPN 50V 30MA SOT-323

Data Sheet

0-1: $0.26
1-25: $0.14
25-100: $0.09
100-500: $0.05
