Product Summary
The SAF-XC161CJ-16F40F is a single-chip CMOS microcontroller. The SAF-XC161CJ-16F40F extends the functionality and performance of the C166Family in terms of instructions (MAC unit) , peripherals, and speed. The SAF-XC161CJ-16F40F combines high CPU performance (up to 40 million instructions per second) with high peripheral functionality and enhanced IO-capabilities.
Parametrics
SAF-XC161CJ-16F40F absolute maximum ratings: (1) Storage temperature TST: -65 to 150°C; (2) Junction temperature Tj: -40 to 150°C; (3) Voltage on VDDI pins withrespect to ground (VSS) , VDDI: -0.5 to 3.25V: (4) Voltage on VDDP pins with respect to ground (VSS) , VDDP: -0.5 to 6.2V; (5) Voltage on any pin with respect to ground (VSS) , VIN: -0.5 to VDDP +0.5V; (6) Input current on any pin during overload condition: -10 to 10mA; (7) Absolute sum of all input
currents during overload condition |100| mA.
Features
SAF-XC161CJ-16F40F features: (1) High Performance 16-bit CPU with 5-Stage Pipeline; (2) 16-Priority-Level Interrupt System with 74 Sources, Sample-Rate down to 50ns; (3) 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC) , 24-Bit Pointers Cover Total Address Space; (4) On-Chip Memory Modules; (5) On-Chip Peripheral Modules; (6) On-Chip Bootstrap Loader; (7) Supported by a Large Range of Development Tools like C-Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers,Simulators, Logic Analyzer Disassemblers, Programming Boards; (8) 144-Pin TQFP Package, 0.5mm (19.7 mil) pitch.

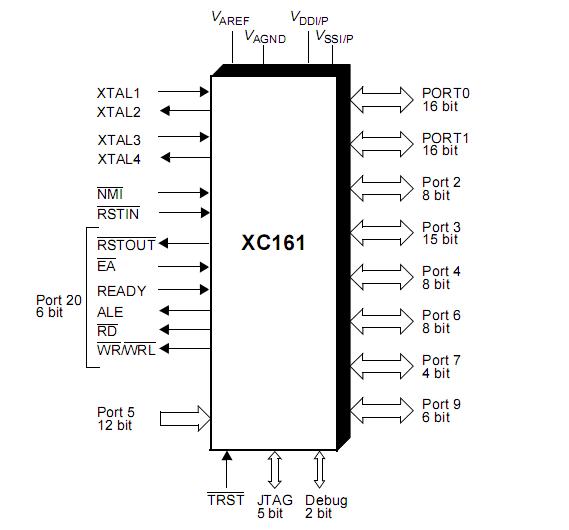

Diagrams
Con
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SAF-XC161CJ-16F40F BB |
Infineon Technologies |
16-bit Microcontrollers (MCU) 16 BIT SNGL CHIP 5V 40MHz Flash |
Data Sheet |
|
|
||||||||||
