Product Summary
The UMD3NTR is a dual digital transistor.
Parametrics
UMD3NTR absolute maximum ratings: (1)Supply voltage, VCC: 50V; (2)Input voltage, VIN: -10V; (3)Output current, IO: 50mA; (4)Power dissipation, IO: 150mW; (5)Junction temperature, TJ: 150℃; (6)Storage temperature, Tstg: -55 to +150℃.
Features
UMD3NTR features: (1)Both the DTA114E chip and DTC114E chip in a EMT or UMT or SMT package; (2)Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines; (3)Transistor elements are independent, eliminating interference; (4)Mounting cost and area can be cut in half.

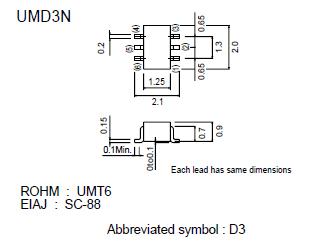

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() UMD3NTR |
![]() ROHM Semiconductor |
![]() Transistors Switching (Resistor Biased) NPN/PNP 50V 50MA |
![]() Data Sheet |
![]()
|
|
||||||||||||
