Product Summary

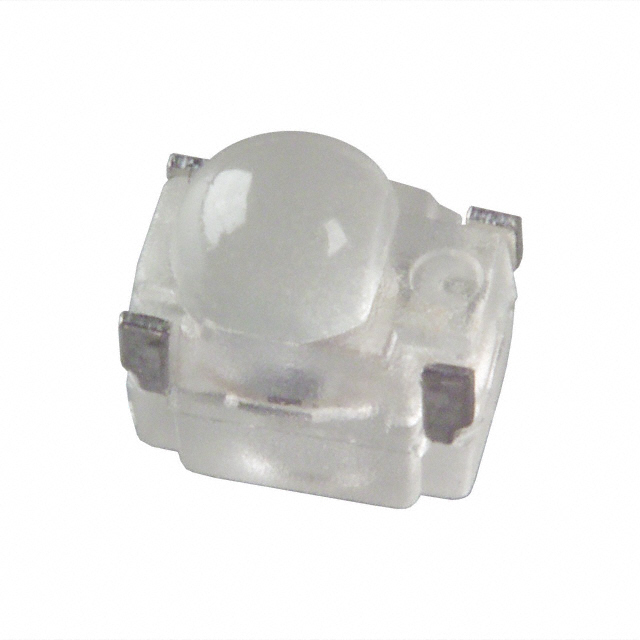

The SIM-030ST is a Surface Mount High Output Infrared LED. The applications of the SIM-030ST include Light source for sensors.
Parametrics
SIM-030ST absolute maximum ratings: (1)Forward current, IF: 100mA; (2)Reverse voltage, VR: 5V; (3)Power dissipation, pd: 180mW; (4)Operating temperature, TOPR: -25 to +85℃; (5)Storage temperature, TSTG: -40 to +85℃.
Features
SIM-030ST features: (1)Higt compact, low-profile; (2)Higt output, over a narrow angle; (3)Exellent temperature property; (4)Long life,high reliability; (5)Original optical tecnology is ultra-high-output surface mount infrared LEDs.

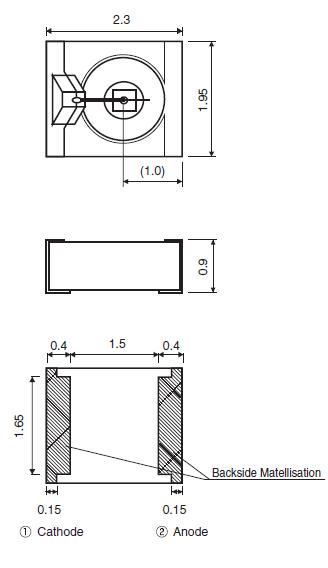

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SIM-030ST |
![]() ROHM Semiconductor |
![]() Infrared Emitters Infrared LED Top View Type |
![]() Data Sheet |
![]()
|
|
||||||||||||||
