Product Summary
The AD8392AAREZ is a Dual-Channel ADSL/ADSL2 Line Driver. The AD8392AAREZ is comprised of four high output current, low power consumption, operational amplifiers. It is particularly well suited for the CO driver interface in digital subscriber line systems, such as ADSL and ADSL2+. The AD8392AAREZ is capable of providing enough power to deliver 20.4 dBm to a line, while compensating for losses due to hybrid insertion and back termination resistors. Four bias modes are available via the use of two digital bits (PD1, PD0). The applications of the AD8392AAREZ include ADSL/ADSL2+ CO line drivers, XDSL line drives.
Parametrics
AD8392AAREZ absolute maximum ratings: (1)Supply Voltage: ±13 V (+26 V); (2)Storage Temperature Range: -65℃ to +150℃; (3)Operating Temperature Range: -40℃ to +85℃; (4)Lead Temperature (Soldering 10 sec): 300℃; (5)Junction Temperature: 150℃.
Features
AD8392AAREZ features: (1)Four current feedback, high current amplifiers; (2)Ideal for use as ADSL/ADSL2+ dual-channel central office (CO) line drivers; (3)Low power operation, Power supply operation from ±5 V (+10 V) up to ±12 V (+24 V); Less than 3 mA/amp quiescent supply current for full power ADSL/ADSL2+ CO applications (20.4 dBm line power, 5.5 CF); Three active power modes plus shutdown; (4)High output voltage and current drive, 500 mA peak output drive current; 42.6 V p-p differential output voltage; (5)Low distortion, -93 dBc @1 MHz second harmonic; -103 dBc @ 1 MHz third harmonic; (6)High speed: 515 V/μs differential slew rate; (7)Additional functionality of AD8392AACP On-chip, common-mode voltage generation.

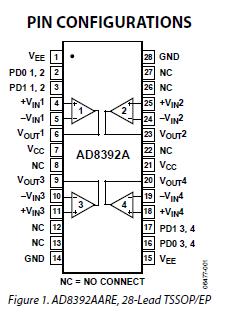

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8392AAREZ |
|

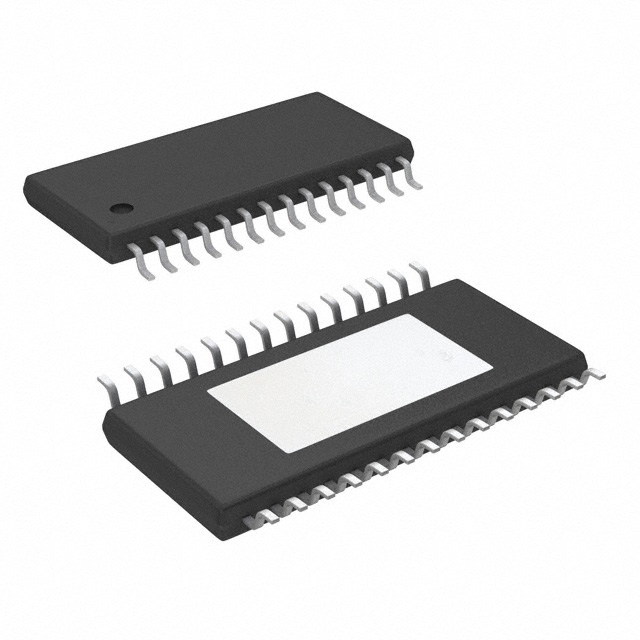

IC ADSL/ADSL2 LINE DRVR 28-TSSOP |
Data Sheet |
|
|
||||||
|
AD8392AAREZ-R7 |
|
IC LINE DRVR ADSL/ADSL 28-TSSOP |
Data Sheet |
|
|
||||||
|
AD8392AAREZ-RL |
|
IC LINE DRVR ADSL/ADSL 28-TSSOP |
Data Sheet |
|
|
||||||
