Product Summary

The PE-68025 is a surface mount 10base-T interface module.

Parametrics

PE-68025 absolute maximum ratings: (1)Weight: 2.5 grams; (2)Tape & Reel: 350/reel; (3)Tube: 20/tube; (4)VRMS min: 1500V.

Features

PE-68025 features: (1)Available in enhanced or standard design versions; (2)Low profile surface mount package; (3)E2000 series part numbers designed for AMD, DEC, LSI, Motorola, and National transceivers; (4)235℃ peak infrared reflow temperature rating.

Diagrams

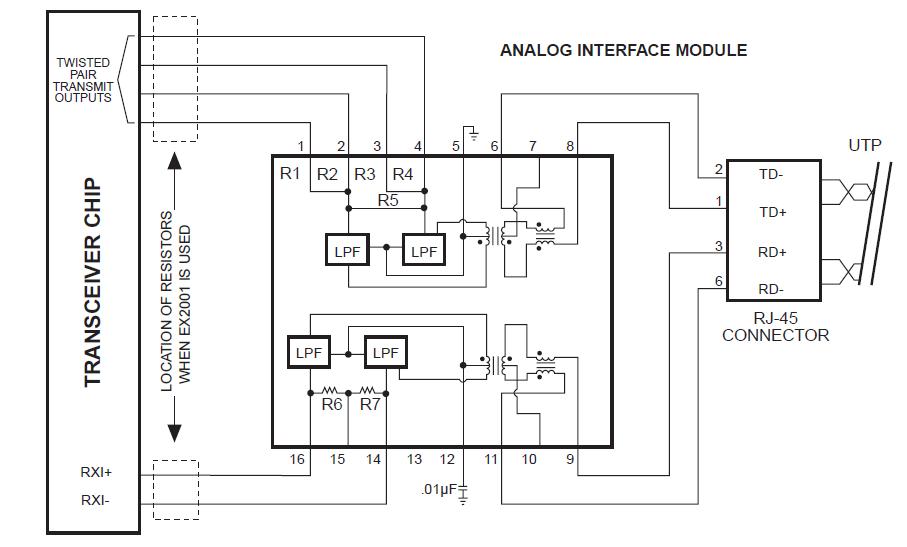

PE-68025 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PE-68025
PE-68025
Pulse
Transformers Audio & Signal CHOKES
Data Sheet
0-1: $8.48
1-10: $7.94
10-100: $7.42
100-500: $6.36
PE-68025QNL
PE-68025QNL
Pulse
Transformers Audio & Signal MODULE
Data Sheet
0-1: $9.30
1-10: $6.20
10-100: $5.64
100-500: $5.13
PE-68025QNLT
PE-68025QNLT
Pulse
Transformers Audio & Signal MODULE
Data Sheet
0-1: $8.85
1-10: $5.89
10-100: $5.36
100-250: $5.36
PE-68025T
PE-68025T
Pulse
Transformers Audio & Signal MOD
Data Sheet
0-149: $4.28
149-250: $4.28
250-500: $4.07
500-1000: $3.89
