Product Summary
The BQ24380DSGR is an Overvoltage and Overcurrent Protection IC and Li+ Charger Front-End Protection IC With LDO Mode designed to provide protection to Li-ion batteries from failures of the charging circuitry. The IC continuously monitors the input voltage and the battery voltage. The device operates like a linear regulator, maintaining a 5.5-V (BQ24380DSGR) output with input voltages up to the Input overvoltage threshold. During input overvoltage conditions, the IC immediately turns off the internal pass FET disconnecting the charging circuitry from the damaging input source. The applications of the BQ24380DSGR include Smart Phones, Mobile Phones, PDAs, MP3 Players, Low-Power Handheld Devices.
Parametrics
BQ24380DSGR absolute maximum ratings: (1)VI, Input voltage, IN (with respect to VSS): -0.3 to 30 V; OUT (with respect to VSS): -0.3 to 12 V; FAULT, CE, VBAT (with respect to VSS): -0.3 to 7 V; (2)IOUTmax, Output source current, OUT: 2 A; Output sink current, FAULT: 15 mA; (3)TJ, Junction temperature: -40 to 150℃; (4)Tstg, Storage temperature: -65 to 150℃.
Features
BQ24380DSGR features: (1)Input Overvoltage Protection; (2)Accurate Battery Overvoltage Protection; (3)Output Short-Circuit Protection; (4)Soft-Start to Prevent Inrush Currents; (5)Soft-Stop to Prevent Voltage Spikes; (6)30-V Maximum Input Voltage; (7)Supports up to 1.7-A Load Current; (8)Thermal Shutdown; (9)Enable Function; (10)Fault Status Indication; (11)Small 2 mm × 2 mm 8-Pin SON Package.

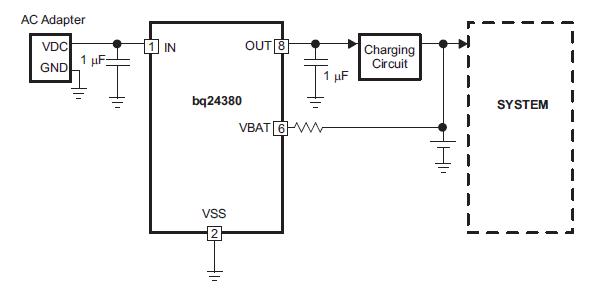

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BQ24380DSGR |
Texas Instruments |
Battery Management Ovrvltg & Ovrcrnt Prot IC |
Data Sheet |
|
|
||||||||||||
 |
BQ24380DSGRG4 |
Texas Instruments |
Battery Management Overvltg and Over crnt Prot IC |
Data Sheet |
|
|
||||||||||||
