Product Summary

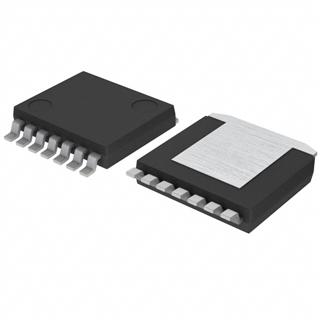

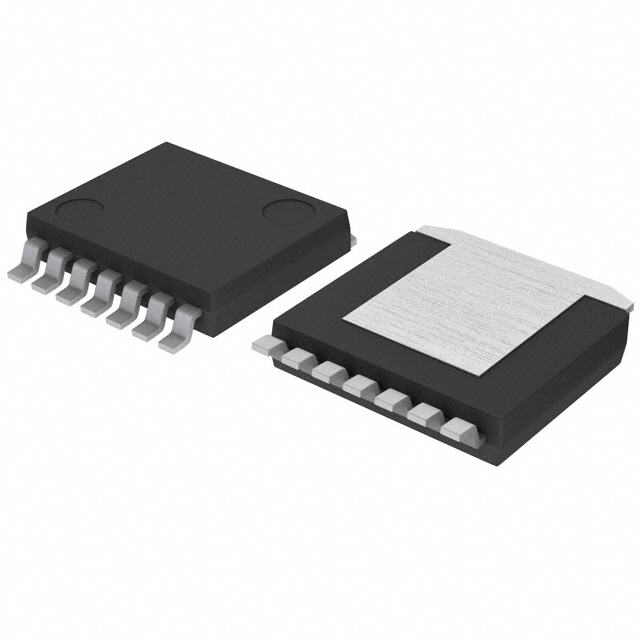

The BD9781HFP-TR is a flexible step-down switching regulator.
Parametrics
BD9781HFP-TR absolute maximum ratings: (1)Supply voltage: 36V; (2)Output SW voltage: Vin V; (3)Output SW current: 4A; (4)RT/FB Pin voltage: 7V; (5)Power dissipation: 5.5 W; (6)Operating temperature range: -40 to +125℃; (7)Storage temperature range: -55 to +150℃; (8)Maximum junction temperature: 150℃.
Features
BD9781HFP-TR features: (1)Wide input range: 7 to 35V; (2)Integrated 4A Pch power MOS FET; (3)High precision( reference voltage: ±2%; (4)Adjustable frequency: 5 to 500kHz (maximum synchronous frequency: 500kHz).

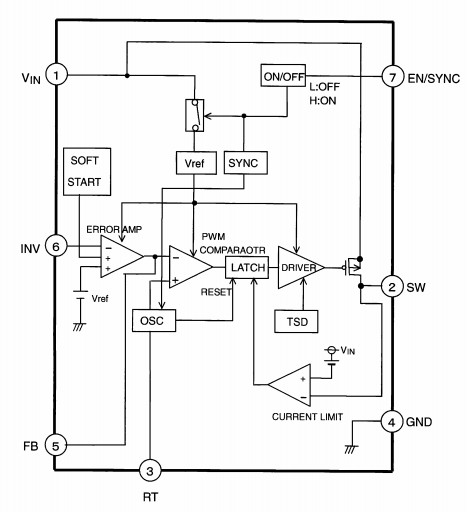

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BD9781HFP-TR |
ROHM Semiconductor |
Switching Converters, Regulators & Controllers IC REG SW 4A P-CH MOSF STDN |
Data Sheet |
|
|
||||||||||||
