Product Summary

The S29GL016A10TFI010 is a 3.0-Volt single-power Flash memory manufactured using 200nm MirrorBit technology. Depending on the model number, the device has an 8-bit wide data bus only, 16-bit wide data bus only, or a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE input. The S29GL016A10TFI010 can be programmed either in the host system or in standard EPROM programmers.

Parametrics

S29GL016A10TFI010 absolute maxing ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5V to +4.0V; A9, OE, ACC and RESET: -0.5V to +12.5 V; All other pins: -0.5V to VCC+0.5V; (4)Output Short Circuit Current: 200mA.

Features

S29GL016A10TFI010 features: (1)Program Suspend & Resume: read other sectors before programming operation is completed; (2)Erase Suspend & Resume: read/program other sectors before an erase operation is completed; (3)Data polling & toggle bits provide status; (4)CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices; (5)Unlock Bypass Program command reduces overall multiple-word programming time.

Diagrams

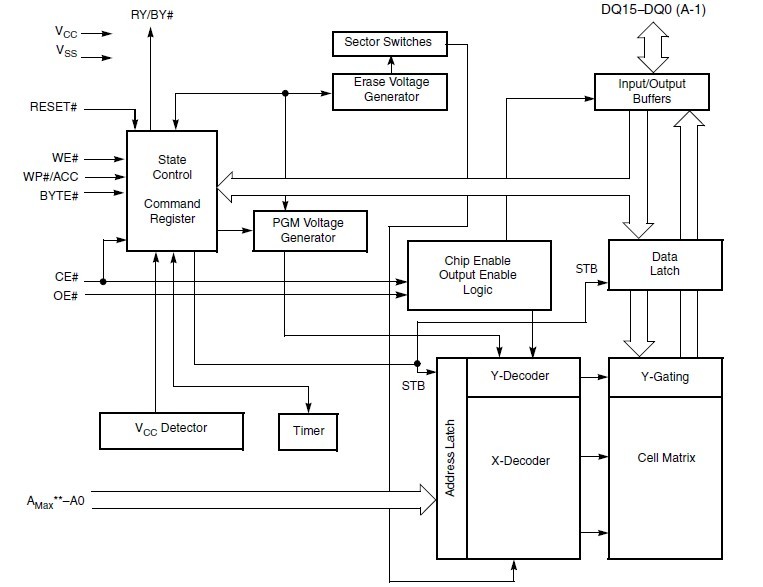

S29GL016A10TFI010 block diagram
