Product Summary
The NJM2529FH1 is a color TFT signal processor. It contains all function, like as Y/C separator circuit, color signal de-modulator, synchronous separate circuit, RGB interface, side black control circuit, and common pole driver, required by color TFT signal processing. The NJM2529FH1 keeps selecting NTSC/PAL with external VCXO circuit TRAP circuit for each broadcasting.
Parametrics
NJM2529FH1 absolute maximum ratings: (1)Supply Voltage 1, VCC1 - GND: 8.0 V; (2)Supply Voltage 2, VCC2 - GND: 8.0 V; (3)Supply Voltage 3, VCC3 - VEE1: 15.0 V; (4)Supply Voltage 4, VCC4 - GND: 8.0 V; (5)Supply Voltage 5, VEE1 - GND: -7.0 V; (6)Power Dissipation, PD: 1400 mW; (7)Each Adjustment Terminal, VIN VCC1: V; (8)Sync Out Voltage, VSD: VEE1+Vcc3 V; (9)Video Input Voltage, VVDIN: 3.0 VP-P; (10)External Input Voltage, EXTIN: VCC1 V; (11)Analog RGB Input Signal, RGBIN: VCC1 V; (12)FRP Input Signal Voltage, FRPIN: VCC1 V; (13)SYNC Input Voltage, SYNCIN: 3.0 VP-P; (14)Operating Temperature Range, Topr: -40 to +85℃; (15)Storage Temperature Range, Tstr: -40 to +125℃.
Features
NJM2529FH1 features: (1)NTSC/PAL matching (Resemblance PAL de-modulation system); (2)Internal Y/C separate circuit; (3)Input mode: Composite video signal, Y/C separate signal; (4)Internal one systems input for analog RGB; (5)Internal synchronous separate circuit (Liquid crystal panel PLL use); (6)Internal black level insertion circuit (Use for aspect ratio change); (7)Internal Gamma 2-point correction circuit; (8)Internal Color TFT Common Pole Driver; (9)Bipolar technology; (10)Package Outline QFP64-H1.

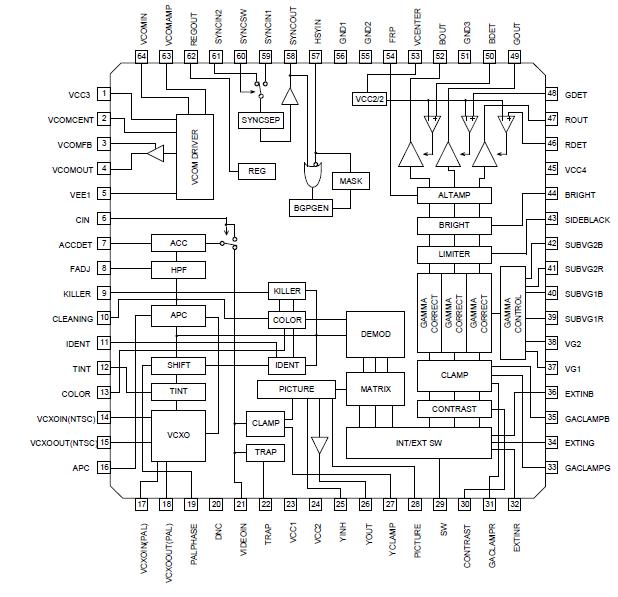

Diagrams
