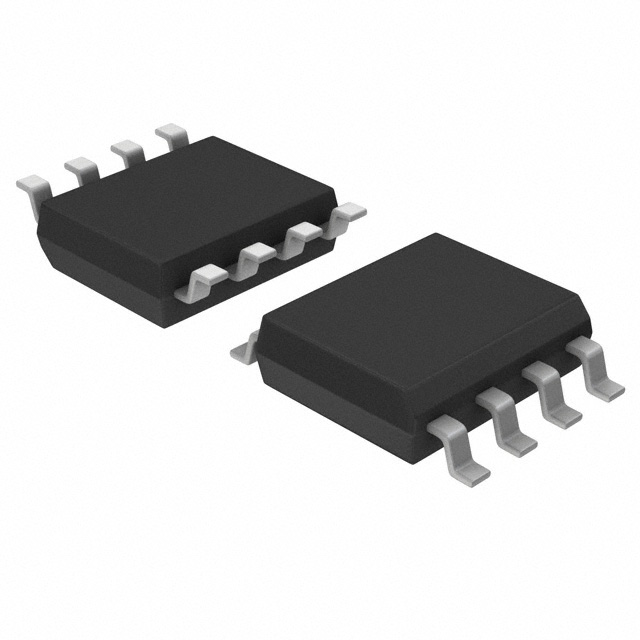

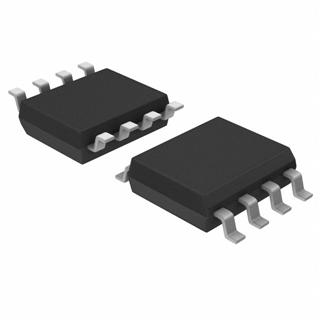

MC33502DR2

Product Summary

The MC33502DR2 is an operational amplifier provides rail-to-rail operation on both the input and output. The output can swing within 50 mV of each rail. This rail-to-rail operation enables the user to make full use of the entire supply voltage range available. The MC33502DR2 is designed to work at very low supply voltages (1.0 V and ground), yet can operate with a supply of up to 7.0 V and ground. Output current boosting techniques provide high output current capability while keeping the drain current of the amplifier to a minimum. The applications of the MC33502DR2 include Single Cell NiCd/Ni MH Powered Systems, Interface to DSP, Portable Communication Devices, Low Voltage Active Filters, Telephone Circuits, Instrumentation Amplifiers, Audio Applications, Power Supply Monitor and Control, Compatible with VCX Logic.

Parametrics

MC33502DR2 absolute maximum ratings: (1)Supply voltage, VS: 7V; (2)ESD protection voltage at any pin human body model, VESD: 2000V; (3)Voltage at any device pin, VDP: VS ±0.3V; (4)Input differential voltage range, VIDR: VCC TO VEE V; (5)Common mode input voltage range, VCM: VCC to VEE V; (6)Maximum junction temperature, TJ: 150℃; (7)Storage temperature range, Tstg: -65 to +150℃.

Features

MC33502DR2 features: (1)Low Voltage, Single Supply Operation (1.0 V and Ground to 7.0 V and Ground); (2)High Input Impedance: Typically 40 fA Input Current; (3)Typical Unity Gain Bandwidth @ 5.0 V = 5.0 MHz, @ 1.0 V = 4.0 MHz; (4)High Output Current (ISC = 40 mA @ 5.0 V, 13 mA @ 1.0 V); (5)Output Voltage Swings within 50 mV of Both Rails @ 1.0 V; (6)Input Voltage Range Includes Both Supply Rails; (7)High Voltage Gain: 100 dB Typical @ 1.0 V; (8)No Phase Reversal on the Output for Over-Driven Input Signals; (9)Input Offset Trimmed to 0.5 mV Typical; (10)Low Supply Current (ID = 1.2 mA/per Amplifier, Typical); (11)600 Ω Drive Capability; (12)Extended Operating Temperature Range (-40 to 105℃); (13)Pb-Free Packages are Available.

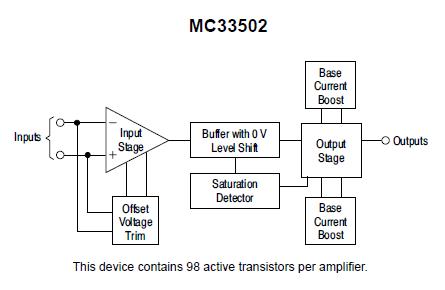

Diagrams
