Product Summary
The US6M2TR is a 2.5V Drive Nch+Pch MOS FET. The application of the US6M2TR includes Switching.
Parametrics
US6M2TR absolute maximum ratings: (1)Drain-source voltage, VDSS: 30V; (2)Gate-source voltage, VGSS: 12V; (3)Drain current, continuous, ID: ±1.5A; IDP: ±6A; (4)Source current, IS: 0.6A; ISP: 6A; (5)Tatol power dissipation, PD: 1.0W; (6)Channel temperature, Tch: 150℃; (7)Storage temperature, Tstg: -55 to +150℃.
Features
US6M2TR features: (1)Nch MOS FET and PchMOS FET are put in TUMT6 package; (2)High-speed switching, lowOn-resistance; (3)Low voltage drive (2.5V drive); (4)Built-in G-S Protection Diode.

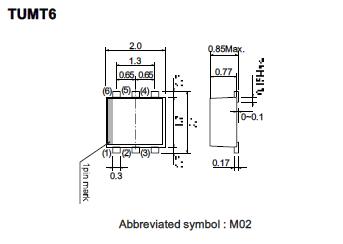

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() US6M2TR |
![]() ROHM Semiconductor |
![]() MOSFET N+P 20V 1.5A/1A |
![]() Data Sheet |
![]()
|
|
||||||||||||
