Product Summary

The ICS511M is a LOCO PLL Clock Multiplier. The ICS511M is the most cost effective way to generate a high quality, high frequency clock output from a lower frequency crystal or clock input. The name LOCO stands for Low Cost Oscillator, as it is designed to replace crystal oscillators in most electronic systems. Using Phase-Locked Loop (PLL) techniques, the device uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 200 MHz.

Parametrics

ICS511M absolute maximum ratings: (1)Supply Voltage, VDD: 7 V; (2)All Inputs and Outputs: -0.5 V to VDD +0.5 V; (3)Ambient Operating Temperature (Commercial grade): 0 to +70℃; (4)Ambient Operating Temperature (Industrial grade): -40 to +85℃; (5)Storage Temperature: -65 to +150℃; (6)Soldering Temperature: 260℃.

Features

ICS511M features: (1)Packaged as 8-pin SOIC or die; (2)Available in Pb (lead) free package; (3)Upgrade of popular ICS501 with: changed multiplier table; faster operating frequencies; output duty cycle at VDD/2; (4)Zero ppm multiplication error; (5)Input crystal frequency of 5 - 27 MHz; (6)Input clock frequency of 2 - 50 MHz; (7)Output clock frequencies up to 200 MHz; (8)Extremely low jitter of 25 ps (one sigma); (9)Compatible with all popular CPUs; (10)Duty cycle of 45/55 up to 200 MHz; (11)Mask option for nine selectable frequencies; (12)Operating voltage of 3.3 V or 5 V; (13)Tri-state output for board level testing; (14)Industrial temperature version available; (15)Advanced, low power CMOS process.

Diagrams

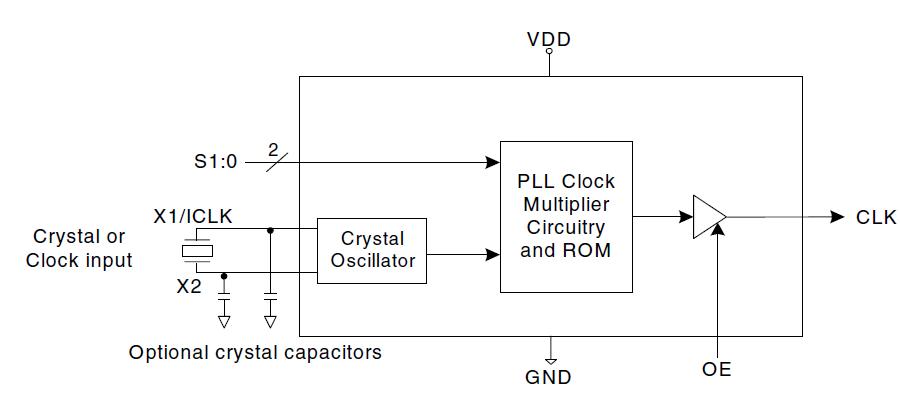

ICS511M block diagram
