Product Summary

The ADM483EARZ is a robust, low power differential line transceiver suitable for communication on multipoint bus transmission lines. Internal protection against electrostatic discharge (ESD), electrical fast transient (EFT) and electromagnetic immunity (EMI) allows operation in electrically harsh environments. ESD protection on the I-O lines meets ±15 kV when tested using the Human Body Model. EFT protection meets ±2 kV in accordance with IEC1000-4-4, while EMI immunity is in excess of 10 V/m meeting IEC1000-4-3. The applications of the ADM483EARZ include Low Power RS-485 Systems, Electrically Harsh Environments, EMI Sensitive Applications, DTE-DCE Interface, Packet Switching, Local Area Networks.

Parametrics

ADM483EARZ absolute maximum ratings: (1)VCC: +7 V; (2)Inputs, Driver Input (DI): -0.5 V to VCC + 0.5 V; Control Inputs (DE, RE): -0.5 V to VCC + 0.5 V; (3)Receiver Inputs (A, B): -14 V to +14 V; (4)Outputs, Driver Outputs: -12.5 V to +12.5 V; Receiver Output: -0.5 V to VCC +0.5 V; (5)ESD Rating: Air (Human Body Model) (A, B Pins): ±15 kV; (6)ESD Rating: Contact (Human Body Model)(A, B Pins): ±8 kV; (7)ESD Rating MIL-STD-883B Method 3015(Except A, B): ±3.5 kV; (8)EFT Rating (IEC1000-4-4) (A, B Pins): ±2 kV; (9)EMI Immunity (IEC1000-4-3): 10 V/m; (10)Power Dissipation 8-Pin DIP: 727 mW.

Features

ADM483EARZ features: (1)Robust RS-485 Transceiver; (2)15 kV ESD Protection Using HBM; (3)2 kV EFT Protection Meets IEC1000-4-4; (4)High EM Immunity Meets IEC1000-4-3; (5)Reduced Slew Rate for Low EM Interference; (6)250 kbps Data Rate; (7)Single +5 V ±10% Supply; (8)–7 V to +12 V Bus Common-Mode Range; (9)12 kV Input Impedance; (10)Short Circuit Protection; (11)Excellent Noise Immunity; (12)36 mA Supply Current; (13)0.1 mA Shutdown Current.

Diagrams

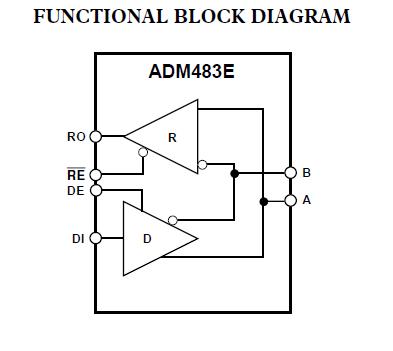

ADM483EARZ block diagram
