Product Summary

The ADG433BRZ is a LC2MOS Precision Quad SPST Switch. It is a monolithic CMOS device comprising four independently selectable switches. The ADG433BRZ is designed on an enhanced LC2MOS process which provides low power dissipation yet gives high switching speed and low on resistance.

Parametrics

ADG433BRZ absolute maximum ratings: (1)VDD to VSS: +44 V; (2)VDD to GND: –0.3 V to +25 V; (3)VSS to GND: +0.3 V to –25 V; (4)VL to GND: –0.3 V to VDD + 0.3 V; (5)Continuous Current, S or D: 30 mA; (6)Peak Current, S or D: 100 mA; (7)Storage Temperature Range: –65℃ to +150℃; (8)Junction Temperature: +150℃; (9)Cerdip Package, Power Dissipation: 900 mW.

Features

ADG433BRZ features: (1)44 V Supply Maximum Ratings; (2)±15 V Analog Signal Range; (3)Low On Resistance (<24 Ω); (4)Ultralow Power Dissipation (3.9 μW); (5)Low Leakage (<0.25 nA); (6)Fast Switching Times; (7)tON <165 ns; (8)tOFF <130 ns; (9)Break-Before-Make Switching Action; (10)TTL/CMOS Compatible.

Diagrams

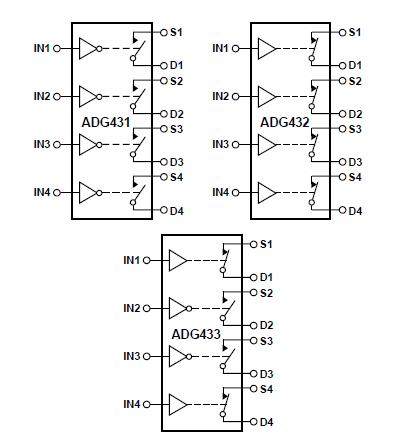

ADG433BRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG433BRZ
ADG433BRZ

IC SWITCH QUAD SPST 16SOIC
Data Sheet
0-1: $3.35
1-10: $3.00
10-100: $2.46
100-250: $2.22
250-500: $1.99
500-1000: $1.68
1000-2500: $1.60
