Product Summary
The 74LVX32TTR is a low voltage CMOS QUAD 2-INPUT OR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. The 74LVX32TTR is ideal for low power, battery operated and low noise 3.3V applications. The internal circuit is composed of 2 stages including buffer output, which provides high noise immunity and stable output. Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage.
Parametrics
74LVX32TTR absolute maximum ratings: (1)VCC, Supply Voltage: -0.5 to +7.0 V; (2)VI, DC Input Voltage: -0.5 to +7.0 V; (3)VO, DC Output Voltage: -0.5 to VCC + 0.5 V; (4)IIK, DC Input Diode Current: - 20 mA; (5)IOK, DC Output Diode Current: ± 20 mA; (6)IO, DC Output Current: ± 25 mA; (7)ICC or IGND, DC VCC or Ground Current: ± 50 mA; (8)Tstg, Storage Temperature: -65 to +150℃; (9)TL, Lead Temperature (10 sec): 300℃.
Features
74LVX32TTR features: (1)High speed: tPD = 4.4ns (TYP.) at VCC = 3.3V; (2)5V tolerant inputs; (3)Input voltage level: VIL=0.8V, VIH=2V AT VCC=3V; (4)Low power dissipation: ICC = 2 mA (MAX.) at TA=25℃; (5)Low noise: VOLP = 0.3V (TYP.) at VCC = 3.3V; (6)Symmetrical output impedance: |IOH| = IOL = 4mA (MIN); (7)Balanced propagation delays: tPLH @ tPHL; (8)Operating voltage range: VCC(OPR) = 2V to 3.6V (1.2V Data Retention); (9)pin and function compatible with 74 series 32; (10)improved latch-up immunity; (11)power down protection on inputs.

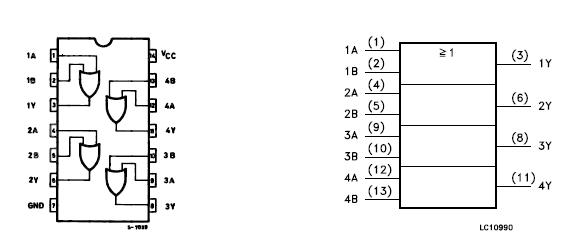

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LVX32TTR |
|

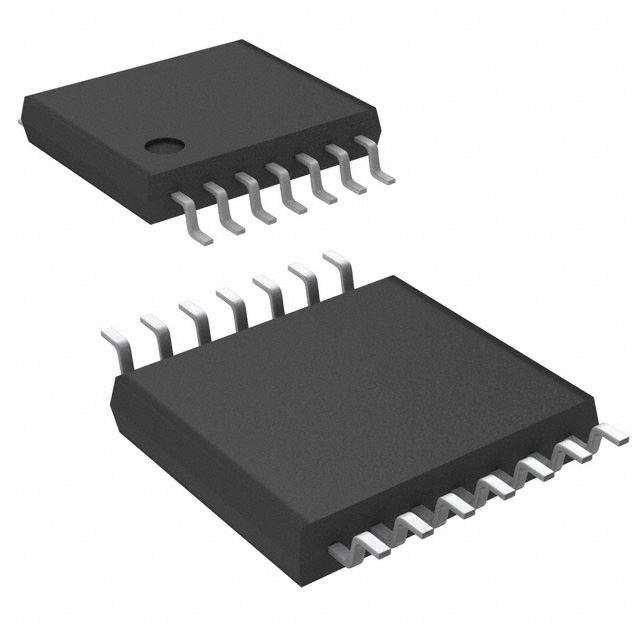

IC GATE OR QUAD 2-INPUT 14-TSSOP |
Data Sheet |
|
|
||||||||||||||||||
