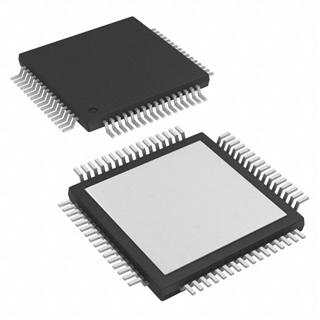

TAS5706PAPR

Product Summary

The TAS5706PAPR is a 20-W, efficient, digital audio power amplifier for driving stereo bridged-tied speakers. Two serial data inputs allow processing of up to four discrete audio channels and seamless integration to most digital audio processors and MPEG decoders, accepting a wide range of input data and clock rates. A fully programmable data path allows these channels to be routed to the internal speaker drivers or output via the subwoofer or headphone PWM outputs. The TAS5706PAPR is a slave-only device receiving all clocks from external sources.

Parametrics

TAS5706PAPR absolute maximum ratings: (1)Supply voltage DVDD, AVDD: -0.3 to 3.6 V; PVCC: -0.3 to 30 V; (2)Input voltage 3.3-V digital input: -0.5 to DVDD + 0.5 V; (3)5-V tolerant(2) digital input: -0.5 to 6 V; (4)Input clamp current, IIK (VI < 0 or VI > 1.8 V: ±20 mA; (5)Output clamp current, IOK (VO < 0 or VO > 1.8 V: ±20 mA; (6)Operating free-air temperature: 0 to 85℃; (7)Operating junction temperature range: 0 to 150℃; (8)Storage temperature range, Tstg: -40 to 125℃.

Features

TAS5706PAPR features: (1)Audio Input/Output, 20-W into an 8-Ω Load From an 18-V Supply; Two Serial Audio Inputs (Four Audio Channels); (2)Closed Loop Power Stage Architecture, Improved PSRR Reduces Power Supply Performance Requirements; Higher Damping Factor Provides for Tighter, More Accurate Sound With Improved Bass Response; Constant Output Power Over Variation in Supply; (3)Wide PVCC Range From (10 V to 26 V), No Separate Supply Required for Gate drive; (4)Supports 32-kHz–192-kHz Sample Rates (LJ/RJ/I2S); (5)Headphone PWM Outputs; (6)Subwoofer PWM Outputs; (7)AM Interference Avoidance Support; (8)Audio/PWM Processing, Independent Channel Volume Controls With ; (9)24-dB to –100-dB Range—Soft Mute (50% Duty Cycle); Programmable Dynamic Range Control; 16 Programmable Biquads for Speaker Equalization; Adaptive Biquad Coefficients for EQ and; (10)DRC Filters; Programmable Input and Output Mixers; Loudness Compensation for Subwoofer; Automatic Sample-Rate Detection and Coefficient Banking.

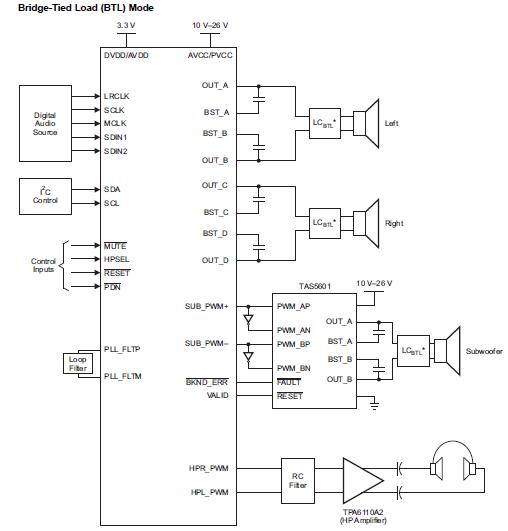

Diagrams
