Product Summary
The STM32F100C6T6B is a low & medium-density value line, advanced ARM-based 32-bit MCU with 16 to 128 KB Flash, 12 timers, ADC, DAC & 8 comm interfaces. The STM32F100C6T6B includes devices in three different packages ranging from 48 pins to 100 pins. Applications of the STM32F100C6T6B include: Application control and user interface, Medical and handheld equipment, PC peripherals, gaming and GPS platform, Industrial PLC, inverters, printers, and scanners Alarm systems, Video intercom, and HVAC.
Parametrics
STM32F100C6T6B absolute maximum ratings: (1) External main supply voltage (including VDDA and VDD) VDD-VSS: -0.3 to 4.0V; (2) Input voltage on five volt tolerant pin VIN: VSS -0.3 to +5.5V; (3) Input voltage on any other pin: VSS -0.3 to VDD +0.3V;(4) Variations between different VDD power pins VDDX: 50mV; (5) Variations between all the different ground pins VSSX-VSS: 50mV.
Features
STM32F100C6T6B features: (1) Core: ARM 32-bit Cortex-M3 CPU; (2) Clock, reset and supply management;(3) 1 × 12-bit, 1.2μs A/D converter (up to 16 channels); (4) 2 × 12-bit D/A converters; (5) Up to 80 fast I/O ports; (6) Up to 8 communication interfaces;(7) CRC calculation unit, 96-bit unique ID; (8) ECOPACK packages.

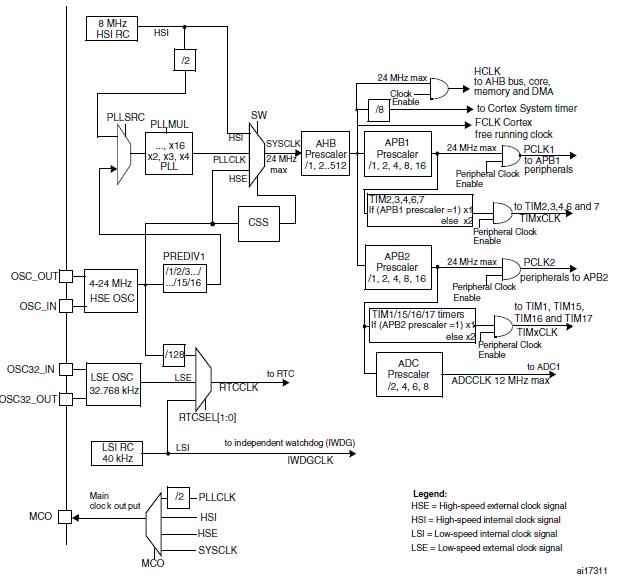

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F100C6T6B |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT CORTEX M3 48PINS 32KB |
Data Sheet |
|
|
||||||||||||
|
STM32F100C6T6BTR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT CORTEX M3 32K Flash 4KB RAM |
Data Sheet |
|
|
||||||||||||
