Product Summary

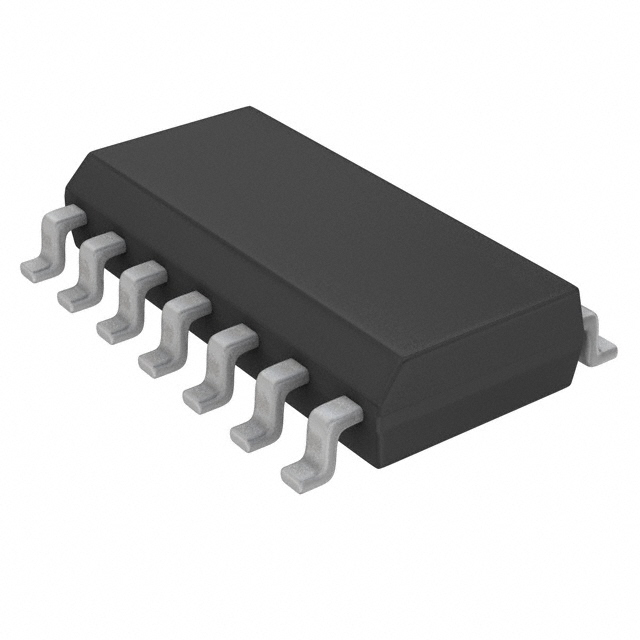

The SN74F04DR is a hex inverter. It contains six independent inverters. The SN74F04DR performs the Boolean function Y = A. The SN74F04DR is characterized for operation over the full military temperature range of 0℃ to 70℃.

Parametrics

SN74F04DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5V to 7V; (2)Input voltage range, VI: -1.2V to 7V; (3)Input current range: -30mA to 5mA; (4)Voltage range applied to any output in the high state: -0.5V to VCC; (5)Current into any output in the low state: 40mA; (6)Operating free-air temperature range: 0℃ to 70℃; (7)Storage temperature range: -65℃ to 150℃.

Features

SN74F04DR features: Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs.

Diagrams

SN74F04DR block diagram
