Product Summary

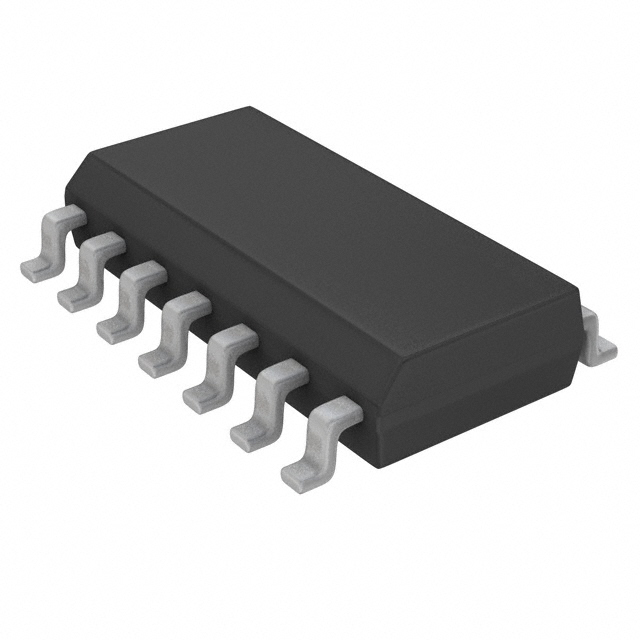

The SN74ACT04DR is a HEX inverter which contains six independent inverters. The device performs the Boolean function Y = A.
Parametrics
SN74ACT04DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to VCC + 0.5 V; (3)Output voltage range, VO: -0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±50 mA; (7)Continuous current through VCC or GND: ±200 mA; (8)Package thermal impedance, θJA (see Note 2): D package: 86℃/W; DB package: 96℃/W; N package: 80℃/W; NS package: 76℃/W; PW package: 113℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74ACT04DR features: (1)4.5-V to 5.5-V VCC Operation; (2)Inputs Accept Voltages to 5.5 V; (3)Max tpd of 8.5 ns at 5 V; (4)Inputs Are TTL-Voltage Compatible.
Diagrams
