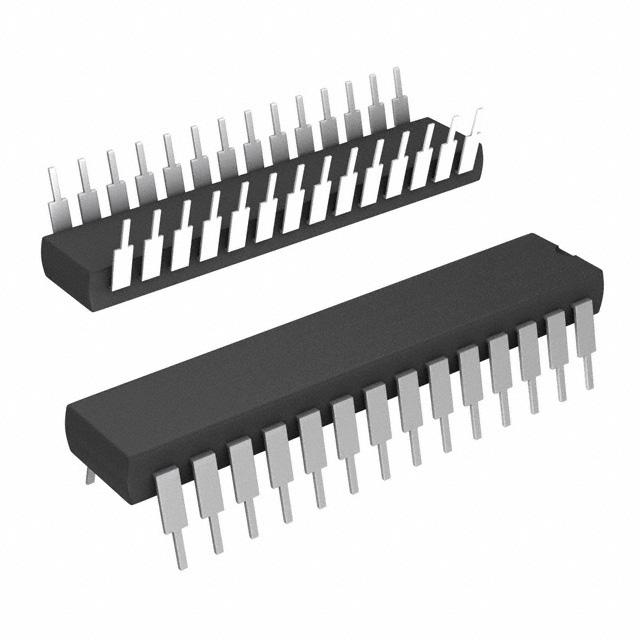

AT27C512R-12PC

AT27C512R-12PC, 512K OTP CMOS EPROM, DIP, 7V, ATI Technologies

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.32

PartNumber:: AT27C512R-12PC

Brand:: ATI Technologies Inc. - ATI | Pack: DIP | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AT27C512R-12PC
US $0.10 - 0.32
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT27C512R-12PC is a low-power, high-performance 524,288-bit one-time programmable read-only memory (OTP EPROM) organized 64K by 8 bits. The AT27C512R-12PC requires only one 5V power supply in normal read mode operation. Any byte can be accessed in less than 45 ns, eliminating the need for speed reducing WAIT states on high-performance microprocessor systems. Atmel’s scaled CMOS technology provides high-speed, lower active power consumption, and significantly faster programming. Power consumption is typically only 8 mA in Active Mode and less than 10 μA in Standby.

Parametrics

AT27C512R-12PC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to + 125℃; (2)Storage Temperature: -65℃ to + 150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0V to + 7.0V; (4)Voltage on A9 with Respect to Ground: -2.0V to + 14.0V; (5)VPP Supply Voltage with Respect to Ground: -2.0V to + 14.0V.

Features

AT27C512R-12PC features: (1)Fast Read Access Time -45 ns; (2)Low-Power CMOS Operation; (3)100μA Max Standby; (4)20 mA Max Active at 5 MHz; (5)JEDEC Standard Packages, 28-lead PDIP; 32-lead PLCC; 28-lead TSOP and SOIC; (6)5V ±10% Supply; (7)High-Reliability CMOS Technology, 2,000V ESD Protection; 200 mA Latchup Immunity; (8)Rapid Programming Algorithm -100 μS/Byte (Typical); (9)CMOS and TTL Compatible Inputs and Outputs; (10)Integrated Product Identification Code; (11)Industrial and Automotive Temperature Ranges; (12)Green (Pb/Halide-free) Packaging Option.
