Product Summary

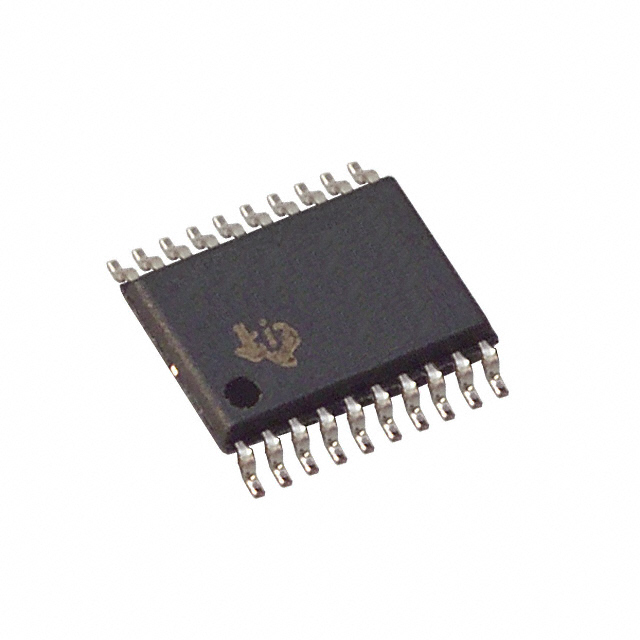

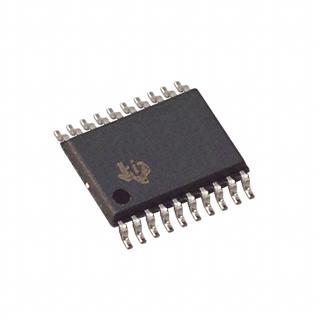

The SN74ABT244APWR is an octal buffer and line driver designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Together with the SN54ABT240, SN74ABT240A, SN54ABT241, and SN74ABT241A, these devices provide the choice of selected combinations of inverting and noninverting outputs, symmetrical active-low output-enable (OE) inputs, and complementary OE and OE inputs. The SN74ABT244APWR is organized as two 4-bit buffers/line drivers with separate OE inputs.
Parametrics
SN74ABT244APWR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Voltage range applied to any output in the high or power-off state, VO: -0.5 V to 5.5 V; (4)Current into any output in the low state, IO: SN74ABT244A: 128 mA; (5)Input clamp current, IIK (VI < 0): 18 mA; (6)Output clamp current, IOK (VO < 0): 50 mA; (7)Package thermal impedance, θJA: DB package: 115℃/W; (8)Storage temperature range, Tstg: 65℃ to 150℃.
Features
SN74ABT244APWR features: (1)State-of-the-Art EPIC-2 B BiCMOS Design Significantly Reduces Power Dissipation; (2)Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17; (3)ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0); (4)Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25℃; (5)High-Drive Outputs (-32-mA IOH, 64-mA IOL); (6)Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) Packages, Ceramic Chip Carriers (FK), Plastic (N) and Ceramic (J) DIPs, and Ceramic Flat (W) Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74ABT244APWR |
Texas Instruments |
Buffers & Line Drivers Tri-State Octal |
Data Sheet |
|
|
||||||||||||
|
SN74ABT244APWRE4 |
Texas Instruments |
Buffers & Line Drivers Octal Buffer/Driver With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74ABT244APWRG4 |
Texas Instruments |
Buffers & Line Drivers Octal Buffer/Driver With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
