Product Summary

The BD6210F-E2 is a H-bridge driver for DC brush motor.

Parametrics

BD6210F-E2 absolute maximum ratings: (1)Supply voltage, VCC: 7V; (2)Output current, IOMAX: 0.5A; (3)All other input pins, VIN: -0.3 to VCC V; (4)Operating temperature, Topr: -40 to +85℃; (5)Storage temperature, TSTG: -55 to +150℃; (6)Power dissipation, PD: 0.687W; (7)Junction temperature, TJmax: 150℃.

Features

BD6210F-E2 features: (1)Voltage setting pin enables for PWM duty control; (2)Supports PWM control signal input.

Diagrams

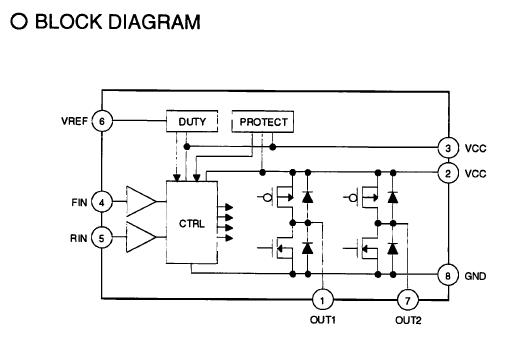

BD6210F-E2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

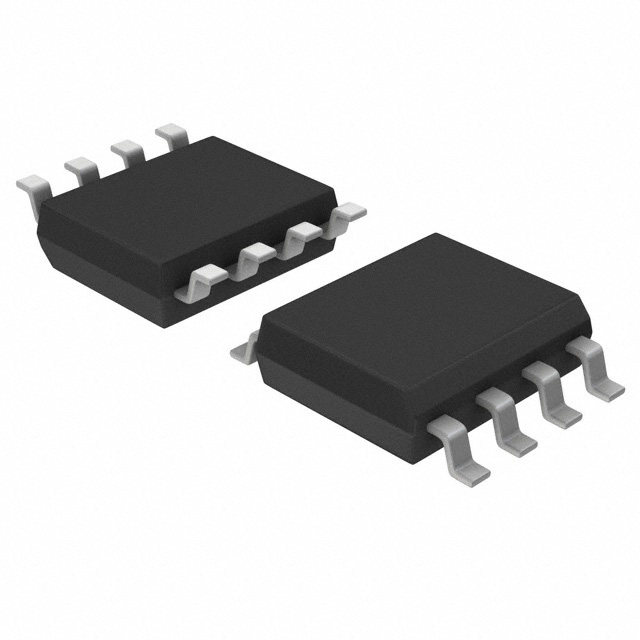

BD6210F-E2
BD6210F-E2
ROHM Semiconductor
Motor / Motion / Ignition Controllers & Drivers H-BRIDGE 7V max 1 Chan 0.5A
Data Sheet
0-1: $1.30
1-25: $1.04
25-100: $0.78
100-500: $0.74
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BD6210F-E2
BD6210F-E2
ROHM Semiconductor
Motor / Motion / Ignition Controllers & Drivers H-BRIDGE 7V max 1 Chan 0.5A
Data Sheet
0-1: $1.30
1-25: $1.04
25-100: $0.78
100-500: $0.74
BD6211F-E2
BD6211F-E2
ROHM Semiconductor
Motor / Motion / Ignition Controllers & Drivers H-BRIDGE 7V max 1 Chan 1.0A 1.0ohm
Data Sheet
0-1: $1.31
1-25: $1.05
25-100: $0.79
100-500: $0.74

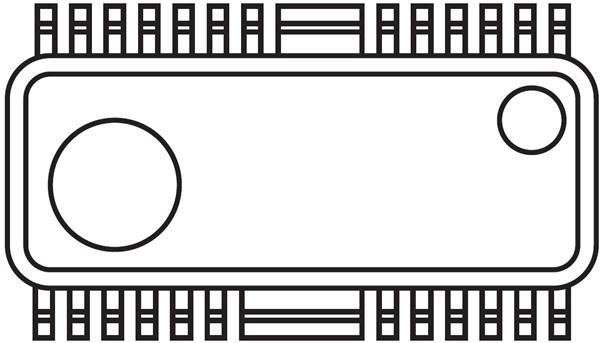

BD6212FP-E2
BD6212FP-E2
ROHM Semiconductor
Motor / Motion / Ignition Controllers & Drivers H-BRIDGE 7V max 1 Chan 2.0A 0.5ohm
Data Sheet
0-1: $1.91
1-25: $1.52
25-100: $1.14
100-500: $1.08
BD6212FP-EVAL-N
BD6212FP-EVAL-N

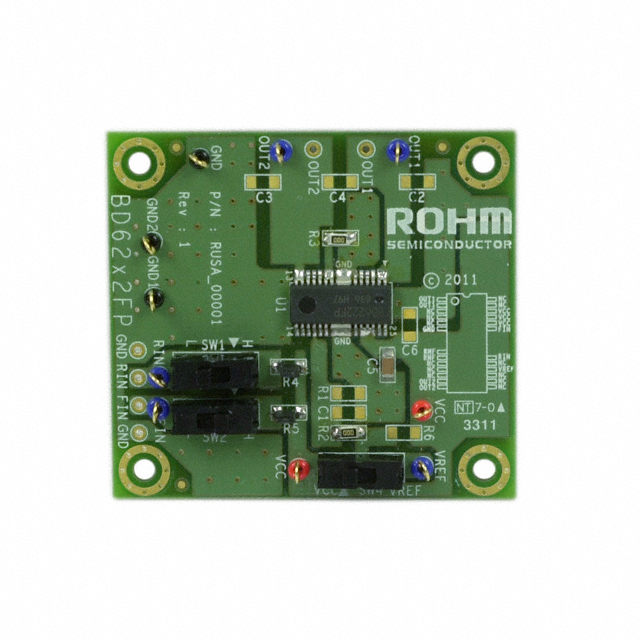

BOARD EVAL FOR BD6212FP
