The SI7904DN-T1-E3 is a monolithic controller that drives a thermoelectric cooler (TEC) to stabilize the temperature of a laser diode or a passive component used in telecommunications equipment. This device relies on a negative temperature coefficient (NTC) thermistor to sense the temperature of the object attached to the TEC. The target temperature is set with an analog input voltage either from a DAC or an external resistor divider. The applications of the SI7904DN-T1-E3 include Thermoelectric Cooler (TEC) Temperature Control, Resistive Heating Element Control, Temperature Stabilization Substrate (TSS) Control.
Parametrics
SI7904DN-T1-E3 absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: GND to VS + 0.3 V; (3)Storage Temperature Range: -65℃ to +150℃; (4)Operating Temperature Range: -40℃ to +85℃; (5)Operating Junction Temperature: 125℃; (6)Lead Temperature Range (Soldering, 10 sec): 300℃.
Features
SI7904DN-T1-E3 features: (1)High Efficiency; (2)Small Size: 5 mm × 5 mm LFCSP; (3)Low Noise: <0.5% TEC Current Ripple; (4)Long-Term Temperature Stability: ±0.01℃; (5)Temperature Lock Indication; (6)Temperature Monitoring Output; (7)Oscillator Synchronization with an External Signal; (8)Clock Phase Adjustment for Multiple Controllers; (9)Programmable Switching Frequency up to 1 MHz; (10)Thermistor Failure Alarm; (11)Maximum TEC Voltage Programmability.

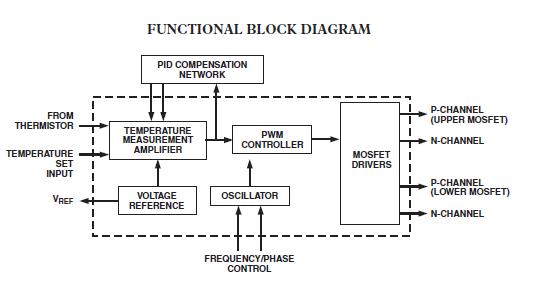

Diagrams
