Product Summary

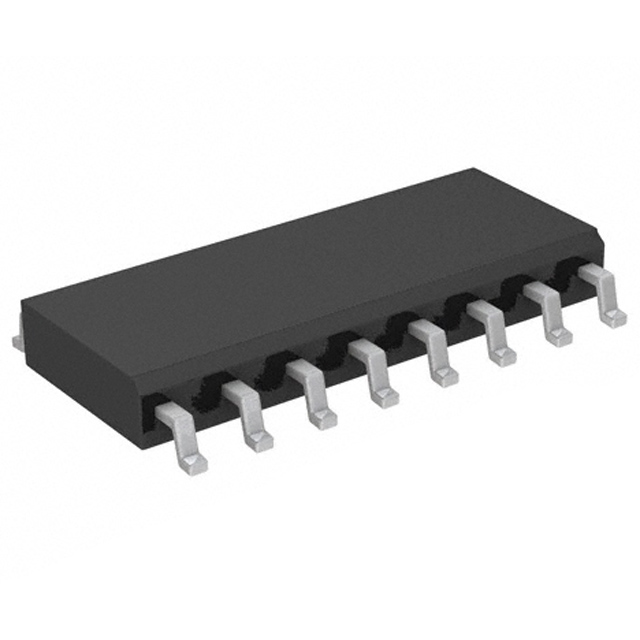

The MM74HC259MX is an 8-Bit Addressable Latch which utilizes advanced silicon-gate CMOS technology to implement an 8-bit addressable latch, designed for general purpose storage applications in digital systems. The MM74HC259MX has a single data input (D), 8 latch outputs (Q1–Q8), 3 address inputs (A, B, and C), a common enable input (G), and a common CLEAR input. To operate this device as an addressable latch, data is held on the D input, and the address of the latch into which the data is to be entered is held on the A, B, and C inputs.
Parametrics
MM74HC259MX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC+1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC+0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600 mW; S.O. Package only: 500 mW; (9)Lead Temperature (TL) (Soldering 10 seconds): 260℃.
Features
MM74HC259MX features: (1)Typical propagation delay: 18 ns; (2)Wide supply range: 2–6V; (3)Low input current: 1 mA maximum; (4)Low quiescent current: 80 mA maximum (74HC Series).
Diagrams

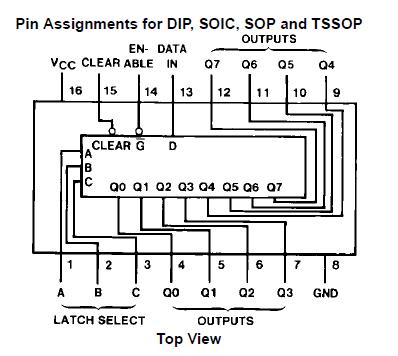

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC259MX |
Fairchild Semiconductor |
Latches 8-Bit Latch/Decoder |
Data Sheet |
Negotiable |
|
||||
