Product Summary
The MC100E111FN is a low skew 1-to-9 differential driver, designed with clock distribution in mind. It accepts one signal input, which can be either differential or else single-ended if the VBB output is used. The signal is fanned out to 9 identical differential outputs. An enable input is also provided. A HIGH disables the device by forcing all Q outputs LOW and all Q outputs HIGH. The MC100E111FN is specifically designed, modeled and produced with low skew as the key goal.
Parametrics
MC100E111FN absolute maximum ratings: (1)VCC, PECL Mode Power Supply VEE = 0 V: 8 V; (2)VI, PECL Mode Input Voltage: 6V; (3)NECL, Mode Input Voltage: -6V; (4)Iout, Output Current Continuous: 50mA, Surge: 100mA; (5)IBB, VBB Sink/Source: ±0.5 mA; (6)TA, Operating Temperature Range: -40 to +85℃; (7)Tstg, Storage Temperature Range: -65 to +150℃; (8)θJA, Thermal Resistance (Junction.to.Ambient), 0 lfpm, PLCC-28: 63.5℃/W; 500 lfpm, PLCC.28: 43.5℃/W; (9)θJC, Thermal Resistance (Junction-to-Case) Standard Board, PLCC-28: 22 to 26℃/W; (10)Tsol, Wave Solder Pb: 265℃; Pb-Free: 265℃.
Features
MC100E111FN features: (1)Guaranteed Skew Spec; (2)Differential Design; (3)VBB Output; (4)PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V; (5)NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V; (6)Internal Input 50 K Pulldown Resistors; (7)ESD Protection: Human Body Model; > 3 kV; (8)Meets or Exceeds JEDEC Standard EIA/JESD78 IC Latchup Test; (9)Moisture Sensitivity Level: Pb = 1; Pb-Free = 3 For Additional Information, see Application Note AND8003/D; (10)Flammability Rating: UL 94 V-0 @ 0.125 in, Oxygen Index: 28 to 34; (11)Transistor Count = 178 devices; (12)Pb-Free Packages are Available.

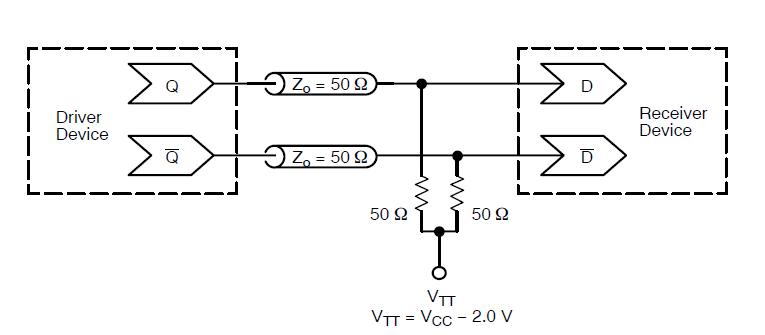

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC100E111FN |
ON Semiconductor |
Clock Buffer 5V ECL 1:9 Diff |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC100E111FNG |
ON Semiconductor |
Clock Buffer BBG ECL Clock Driver |
Data Sheet |
|
|
||||||||||||
|
MC100E111FNR2G |
ON Semiconductor |
Clock Buffer BBG ECL Clock Driver |
Data Sheet |
|
|
||||||||||||
|
MC100E111FNR2 |
ON Semiconductor |
Clock Buffer 5V ECL 1:9 Diff |
Data Sheet |
Negotiable |
|
||||||||||||
