Product Summary

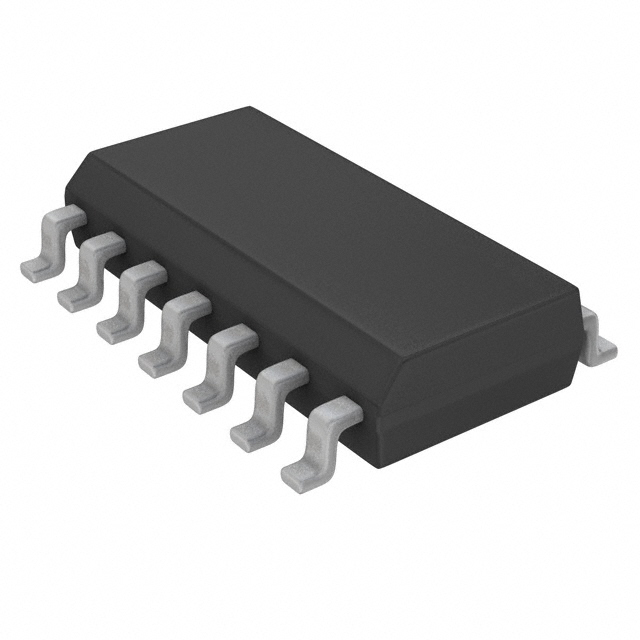

The MC74AC04DR2 is a Hex Inverter.
Parametrics
MC74AC04DR2 absolute maximum ratings: (1)DC Supply Voltage (Referenced to GND), VCC: -0.5 to +7.0V; (2)DC Input Voltage (Referenced to GND), Vin: -0.5 to VCC +0.5V; (3)DC Output Voltage (Referenced to GND), Vout: -0.5 to VCC +0.5 V; (4)DC Input Current, per Pin, Iin: ±20 mA; (5)DC Output Sink/Source Current, per Pin, Iout: ±50 mA; (6)DC VCC or GND Current per Output Pin, ICC: ±50 mA; (7)Storage Temperature, Tstg: -65 to +150℃.
Features
MC74AC04DR2 features: (1)Outputs Source/Sink 24 mA; (2)ACT04 Has TTL Compatible Inputs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74AC04DR2 |
ON Semiconductor |
Inverters 2-6V CMOS Hex |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74AC04DR2G |
ON Semiconductor |
Inverters 2-6V CMOS Hex |
Data Sheet |
|
|
||||||||||||
