Product Summary
The MC33591FTAR2 is a PLL Tuned UHF Receiver.
Parametrics
MC33591FTAR2 absolute maximum ratings: (1)Supply Voltage, VCC VCCLNA: VGND -0.3 to 5.5 V; (2)Voltage Allowed on Each Pin: VGND -0.3 to VCC +0.3 V; (3)ESD HBM Voltage Capability on Each Pin: ±2000 V; (4)ESD MM Voltage Capability on Each Pin: ±200 V; (5)Solder Heat Resistance Test (10 s): 260℃; (6)Storage Temperature, Ts: -65 to +150℃; (7)Junction Temperature, Tj: 150℃.
Features
MC33591FTAR2 features: (1)315MHz, 434MHz Bands; (2)OOK and FSK Demodulation; (3)Low Current Consumption: 5mA Typ. in Run Mode; (4)Internal or External Strobing; (5)Fast Wake-Up Time (1ms); (6)-105dBm RF Sensitivity (at 4.8kBd Data Rate); (7)Fully Integrated VCO; (8)Image Cancelling Mixer; (9)Integrated IF Bandpass Filter at 660kHz; (10)IF Bandwidth: 500kHz; (11)ID Byte and Tone Detection; (12)Data Rate: 1 to 11kBd; (13)Manchester Coded Data Clock Recovery; (14)Fully Configurable by SPI Interface; (15)Few External Components, no RF Adjustment.

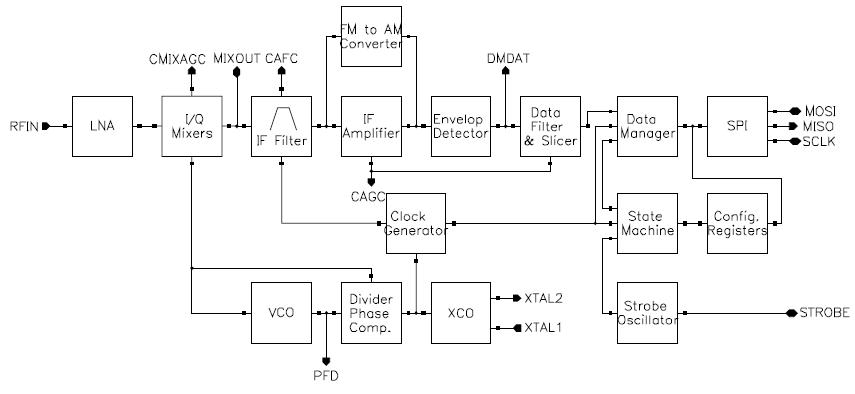

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33591FTAR2 |
|
IC RF RECEIVER 315,434MHZ 24LQFP |
Data Sheet |
Negotiable |
|
||||||||||||
