Product Summary
The MAX3387ECUG is a 3V powered EIA/TIA-232 and V.28/V.24 communications interface with low power requirements, high data-rate capabilities, and enhanced electrostatic discharge (ESD) protection. The MAX3387ECUG has three receivers and three transmitters. All RS-232 inputs and outputs are protected to ±15kV using the IEC 1000-4-2 Air-Gap Discharge method, ±8kV using the IEC 1000-4-2 Contact Discharge method, and ±15kV using the Human Body Model. The applications of the MAX3387ECUG include Subnotebook/Palmtop Computers, PDAs and PDA Cradles, Cell Phone Data Cables, Battery-Powered Equipment, Hand-Held Equipment, Peripherals.
Parametrics
MAX3387ECUG absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)VL to GND: -0.3V to (VCC + 0.3V); (3)V+ to GND: -0.3V to +7V; (4)V- to GND: +0.3V to -7V; (5)V+ + V-: +13V; (6)Input Voltages, T_IN, FORCEON, FORCEOFF to GND: -0.3V to +6V; R_IN to GND: ±25V; (7)Output Voltages, T_OUT to GND: ±13.2V; R_OUT: -0.3V to (VL + 0.3V).
Features
MAX3387ECUG features: (1)VL Pin for Compatibility with Mixed-Voltage Systems; (2)±15kV ESD Protection on Rx Inputs and Tx Outputs; (3)Low 300μA Supply Current; (4)Guaranteed 250kbps Data Rate; (5)1μA AutoShutdown Plus. with Receivers Active; (6)Meets EIA/TIA-232 Specifications Down to 3.0V.

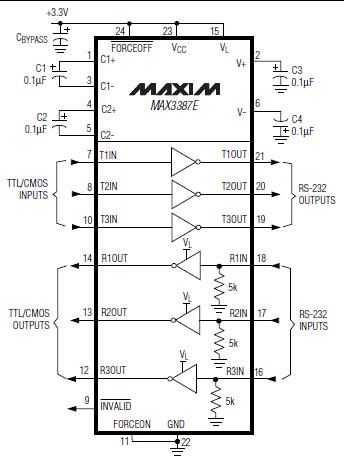

Diagrams

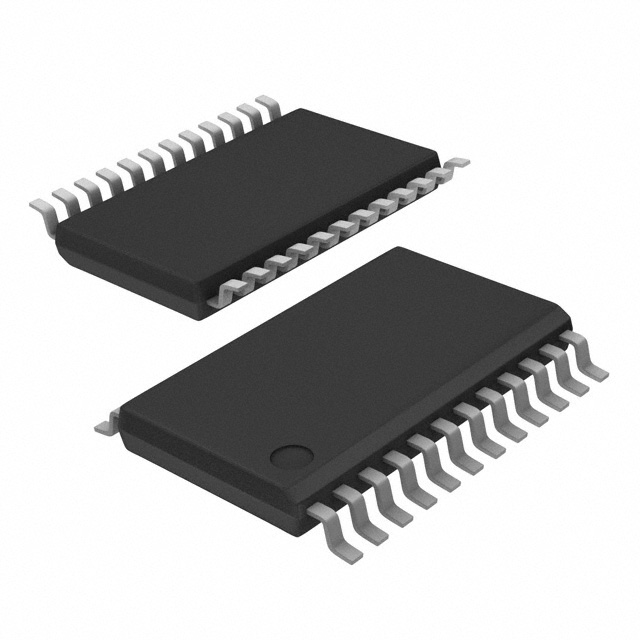

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3387ECUG |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX3387ECUG+ |
Maxim Integrated Products |
RS-232 Interface IC 3V Transceiver for PDAs & Cells |
Data Sheet |
|
|
||||||||||||
|
MAX3387ECUG+T |
Maxim Integrated Products |
RS-232 Interface IC 3V Transceiver for PDAs & Cells |
Data Sheet |
|
|
||||||||||||
 |
MAX3387ECUG-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
