Product Summary
The 2SK3541T2L is a 2.5V Drive Nch MOS FET. It is used in Interfacing, switching (30V, 100mA).
Parametrics
2SK3541T2L absolute maximum ratings: (1)Drain-source voltage VDSS: 30V; (2)Gate-source voltage VGSS: ±20V; (3)Drain current Continuous ID: ±100mA; Pulsed IDP: ±400mA; (4)Total power dissipation PD: 150mW; (5)Channel temperature Tch: 150℃; (6)Storage temperature Tstg: -55 to +150℃.
Features
2SK3541T2L features: (1)Low on-resistance; (2)Fast switching speed; (3)Low voltage drive (2.5V) makes this device ideal for portable equipment; (4)Drive circuits can be simple; (5)Parallel use is easy.

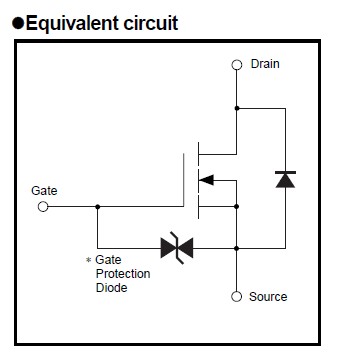

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK3541T2L |
ROHM Semiconductor |
MOSFET N-CH 30V .1A |
Data Sheet |
|
|
||||||||||||
