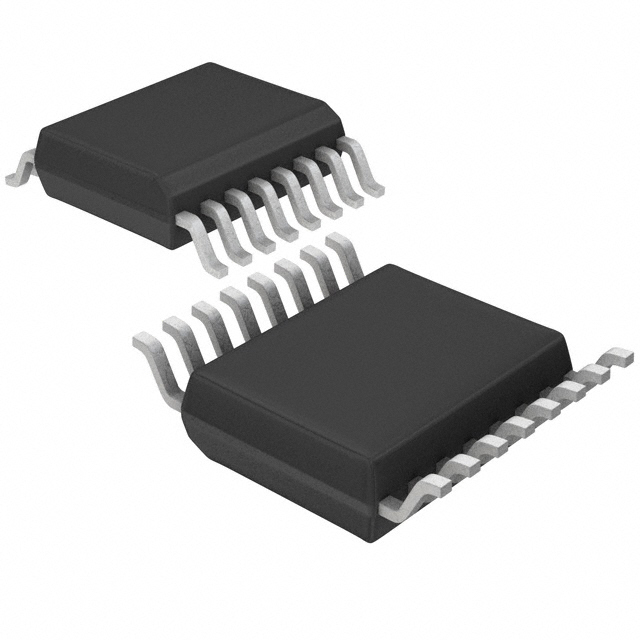

MAX1617MEE

MAX1617MEE, Remote/Local Temperature Sensor, SSOP, 6V, 50mA, 667mW, Dallas Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: MAX1617MEE

Brand:: Dallas Semiconductor - Maxim | Pack: SSOP | D/C: 95+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MAX1617MEE
US $1.00 - 2.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX1617MEE is a precise digital thermometer that reports the temperature of both a remote sensor and its own package. The remote sensor is a diode-connected transistor—typically a low-cost, easily mounted 2N3904 NPN type—that replaces conventional thermistors or thermocouples. Remote accuracy is ±3℃ for multiple transistor manufacturers, with no calibration needed. The applications of the MAX1617MEE include Desktop and Notebook Computers, Central Office Telecom Equipment, Smart Battery Packs, Test and Measurement, LAN Servers, Multi-Chip Modules.

Parametrics

MAX1617MEE absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)DXP, ADD_ to GND: -0.3V to (VCC + 0.3V); (3)DXN to GND: -0.3V to +0.8V; (4)SMBCLK, SMBDATA, ALERT, STBY to GND: -0.3V to +6V; (5)SMBDATA, ALERT Current: -1mA to +50mA; (6)DXN Current: ±1mA; (7)ESD Protection (SMBCLK, SMBDATA,; (8)ALERT, human body model): 4000V; (9)ESD Protection (other pins, human body model): 2000V; (10)Continuous Power Dissipation (TA = +70℃), QSOP (derate 8.30mW/℃ above +70℃): 667mW; (11)Operating Temperature Range: -55℃ to +125℃; (12)Junction Temperature: +150℃; (13)Storage Temperature Range: -65℃ to +165℃; (14)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX1617MEE features: (1)Two Channels: Measures Both Remote and Local; (2)Temperatures; (3)No Calibration Required; (4)SMBus 2-Wire Serial Interface; (5)Programmable Under/Overtemperature Alarms; (6)Supports SMBus Alert Response; (7)Accuracy: ±2℃ (+60℃ to +100℃, local); ±3℃ (-40℃ to +125℃, local); ±3℃ (+60℃ to +100℃, remote); (8)3μA (typ) Standby Supply Current; (9)70μA (max) Supply Current in Auto-Convert Mode; (10)+3V to +5.5V Supply Range; (11)Small, 16-Pin QSOP Package.
