Product Summary

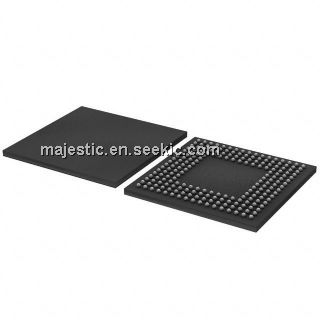

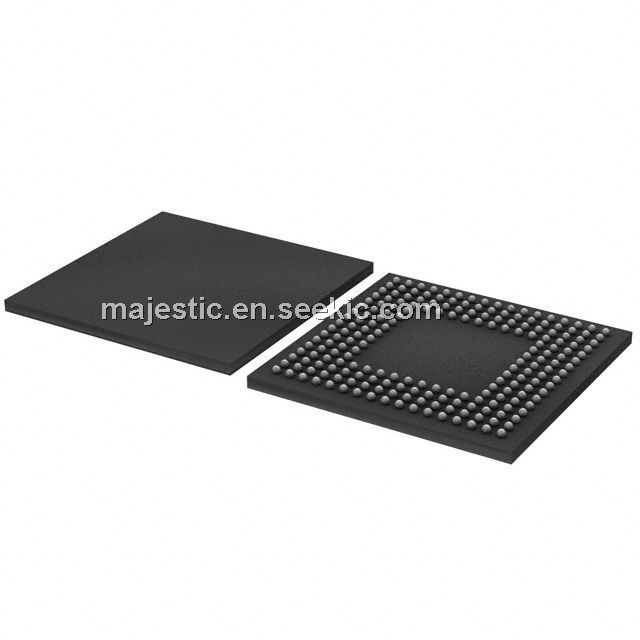

The LPC2468FET208,551 is a single-chip 16-bit/32-bit microcontroller. The LPC2468FET208,551 microcontroller around a 16-bit/32-bit ARM7TDMI-S CPU core with real-time debug interfaces that include both JTAG and embedded trace. The LPC2468FET208,551 has 512 kB of on-chip high-speed flash memory. This flash memory LPC2468FET208,551 includes a special 128-bit wide memory interface and accelerator architecture that enables the CPU to execute sequential instructions from flash memory at the maximum 72 MHz system clock rate.
Parametrics
LPC2468FET208,551 absolute maximum ratings: (1)IDD supply current per supply pin: 100 mA; (2)ISS ground current per ground pin: 100 mA; (3)Tstg storage temperature: -65 +150 ℃; (4)Ptot(pack) total power dissipation (per package) based on package heat transfer, not device power consumption: 1.5 W; (5)VDD(3V3) supply voltage (3.3 V) core and external rail: 3.0 to 3.6 V; (6)VDD(DCDC)(3V3) DC-to-DC converter supply voltage(3.3 V): 3.0 to 3.6 V; (7)VDDA analog 3.3 V pad supply voltage: -0.5 to +4.6 V.
Features
LPC2468FET208,551 features: (1)ARM7TDMI-S processor, running at up to 72 MHz; (2)512 kB on-chip flash program memory with In-System Programming (ISP) and In-Application Programming (IAP) capabilities. Flash program memory is on the ARM local bus for high performance CPU access.

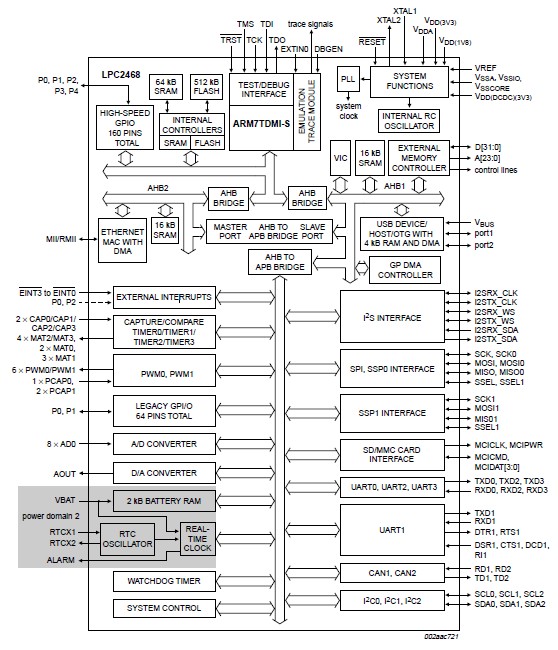

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LPC2468FET208,551 |
NXP Semiconductors |
ARM Microcontrollers (MCU) ARM7 512KF/USBH/ENET |
Data Sheet |
|
|
||||||||||||
