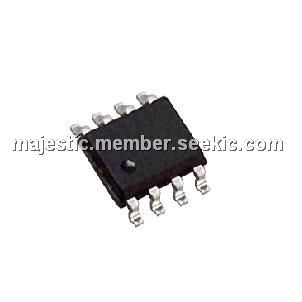

LM258ADR

Product Summary

The LM258ADR is an independent, high-gain, frequency-compensated operational amplifier designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. The applications of the LM258ADR include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems.

Parametrics

LM258ADR absolute maximum ratings: (1)Supply voltage, VCC: ±16 or 32V; (2)Differential input voltage, VID: ±32V; (3)Input voltage, VI (either input): -0.3 to 32V; (4)Duration of output short circuit (one amplifier) to ground; (5)at (or below) 25℃ free-air temperature (VCC ≤ 15 V): Unlimited Unlimited; (6)Operating free-air temperature range, TA: -25 to 85℃; (7)Operating virtual junction temperature, TJ: 150℃; (8)Case temperature for 60 seconds FK package: 260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds JG package: 300℃; (10)Storage temperature range, Tstg: -65 to 150℃.

Features

LM258ADR features: (1)Wide Supply Range: Single Supply: 3 V to 32 V (26 V for LM2904); or Dual Supplies: ±1.5 V to ±16 V(±13 V for LM2904); (2)Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters: Input Offset Voltage: 3 mV Typ; A Versions: 2 mV Typ; Input Offset Current: 2 nA Typ; Input Bias Current: 20 nA Typ, A Versions: 15 nA Typ; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904); (6)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (7)Internal Frequency Compensation.

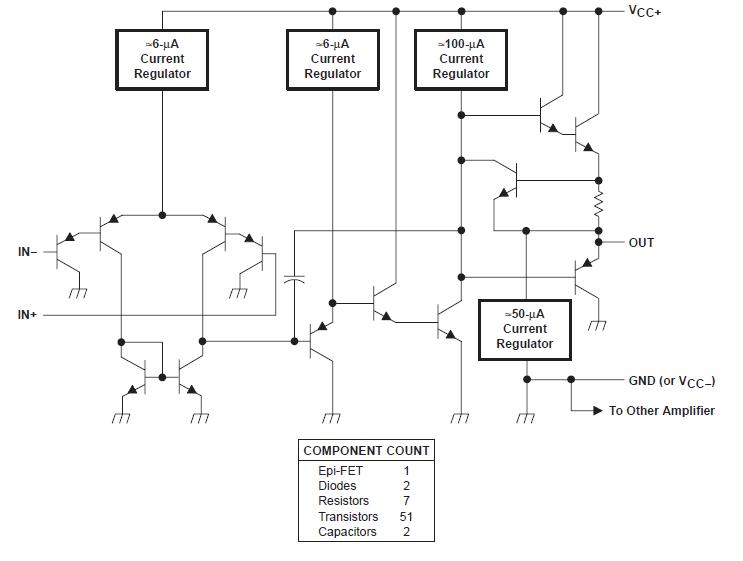

Diagrams
