The IDT49C466PQF is a 64-bit Flow-thruEDC. The IDT49C466PQF is a high-speed error detection and correction unit that ensures data integrity in memory systems. The flow-thru architecture, with separate system and memory data buses, is ideally suited for pipelined memory systems. Implementing a modified Hamming code, the IDT49C466PQF corrects all single bit hard and soft errors, and detects all double bit errors. The read/write FIFO can store up to sixteen words. FIFO full and empty flags indicate whether additional data can be written to or read from the EDC.
Parametrics
IDT49C466PQF absolute maximum ratings: (1)VCC Power Supply Voltage: -0.5 to +7.0 V; (2)VTERM Terminal Voltage with Respect to Ground: -0.5 to VCC + 0.5V ; (3)TBIAS Temperature Under Bias: -55 to +125℃; (4)TSTG Storage Temperature: -55 to +125℃; (5)IOUT DC Output Current: 30 mA.
Features
IDT49C466PQF features: (1)64-bit wide Flow-thruEDC Separate System and Memory Data Input/Output Buses, Error Detect Time: 10ns; Error Correct Time: 15ns; (2)Corrects all single bit errors; Detects all double bit errors and some multiple bit errors; (3)Configurable 16-deep bus read/write FIFOs with flags; (4)Simultaneous check bit generation and correction of memory data; (5)Supports partial word writes on byte boundaries; (6)Low noise output; (7)Sophisticated error diagnostics and error logging; (8)Parity generation on system data bus; (9)208-pin Plastic Quad Flatpack.

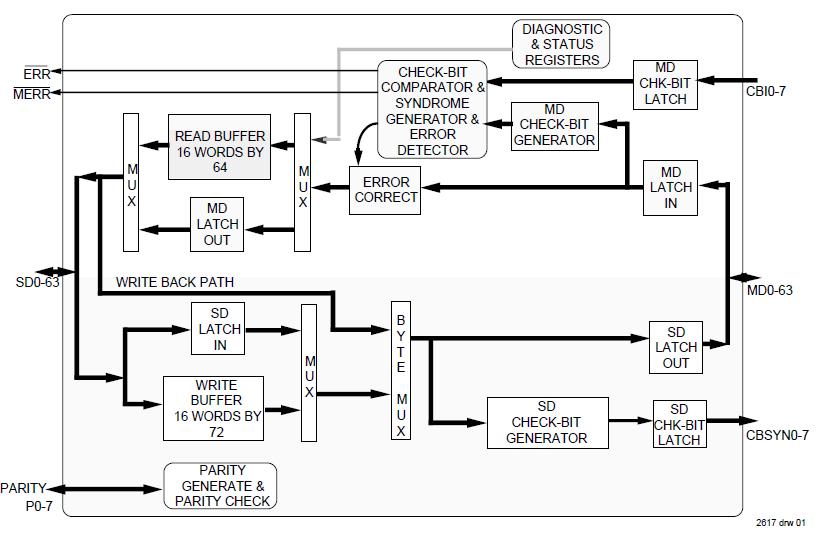

Diagrams
