Product Summary
The H5PS5162FFR-Y5C is a 512Mb DDR2 SDRAM.
Parametrics
H5PS5162FFR-Y5C absolute maximum ratings: (1) Voltage on VDD pin relative to Vss, VDD: -1.0 to 2.3V; (2) Voltage on VDDQ pin relative to Vss, VDDQ: -0.5 to 2.3V; (3) Voltage on VDDL pin relative to Vss, VDDL: -0.5 to 2.3V; (4) Voltage on any pin relative to Vss, VIN, VOUT: -0.5 to 2.3V; (5) Storage Temperature TSTG: -55 to +100°C; (6) Input leakage current; any input 0V VIN VDD; all other balls not under test = 0V) , II: -2uA to 2uA; (7) Output leakage current; 0V VOUT VDDQ; DQ and ODT disabled IOZ: -5uA to 5uA.
Features
H5PS5162FFR-Y5C features: (1) VDD ,VDDQ =1.8 +/- 0.1V; (2) All inputs and outputs are compatible with SSTL_18 interface; (3) Fully differential clock inputs (CK, /CK) operation; (4) Double data rate interface; (5) Source synchronous-data transaction aligned to bidirectional data strobe (DQS, DQS) ; (6) Differential Data Strobe (DQS, DQS
) ; (7) On Die Termination supported; (8) Off Chip Driver Impedance Adjustment supported; (9) Self-Refresh High Temperature Entry; (10) Partial Array Self Refresh support.

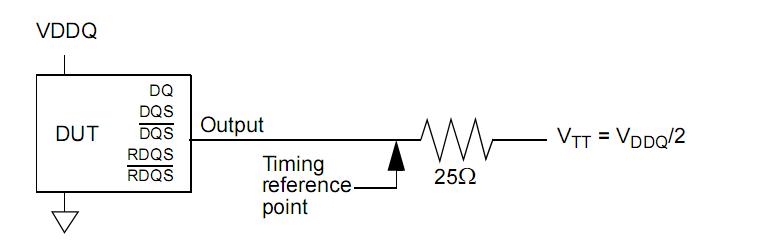

Diagrams
