Product Summary

The EPF10K20RC240-3 is a first embedded PLD in the industry. Based on reconfigurable CMOS SRAM elements, the Flexible Logic Element MatriX (FLEX) architecture incorporates all features necessary to implement common gate array megafunctions. With up to 250,000 gates, the EPF10K20RC240-3 provides the density, speed, and features to integrate entire systems, including multiple 32-bit buses, into a single device. The EPF10K20RC240-3 is reconfigurable, which allows 100% testing prior to shipment. As a result, the designer is not required to generate test vectors for fault coverage purposes. Additionally, the designer does not need to manage inventories of different ASIC designs; the EPF10K20RC240-3 can be configured on the board for the specific functionality required.

Parametrics

EPF10K20RC240-3 absolute maximum ratings: (1)Supply voltage: -2.0 to 7.0 V With respect to ground; (2)DC input voltage: -2.0 to 7.0 V; (3)DC output current, per pin: -25 to 25 mA; (4)Storage temperature: -65 to 150 ℃; (5)Ambient temperature: -65 to 135 ℃; (6)Junction temperature: 150 ℃.

Features

EPF10K20RC240-3 features: (1)The industry first embedded programmable logic device (PLD) family, providing System-on-a-Programmable-Chip (SOPC) integration: Embedded array for implementing megafunctions, such as efficient memory and specialized logic functions, Logic array for general logic functions; (2)High density: 10,000 to 250,000 typical gates, Up to 40,960 RAM bits; 2,048 bits per embedded array block (EAB), all of which can be used without reducing logic capacity.

Diagrams

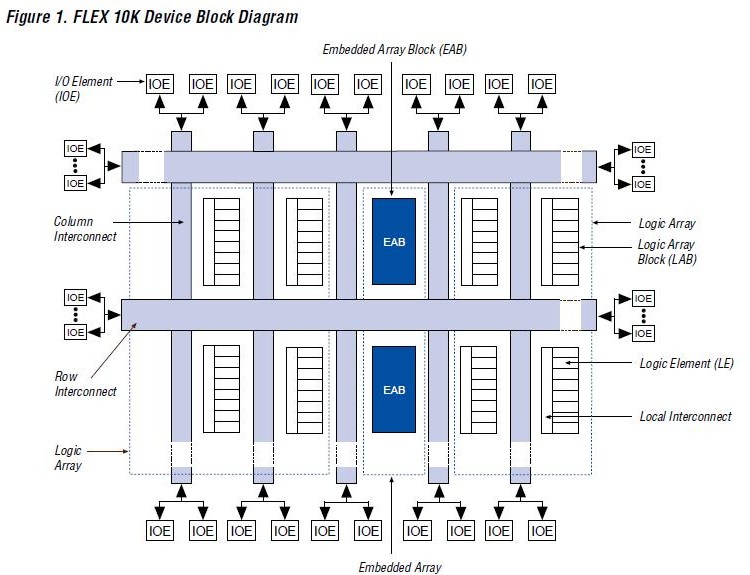

EPF10K20RC240-3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

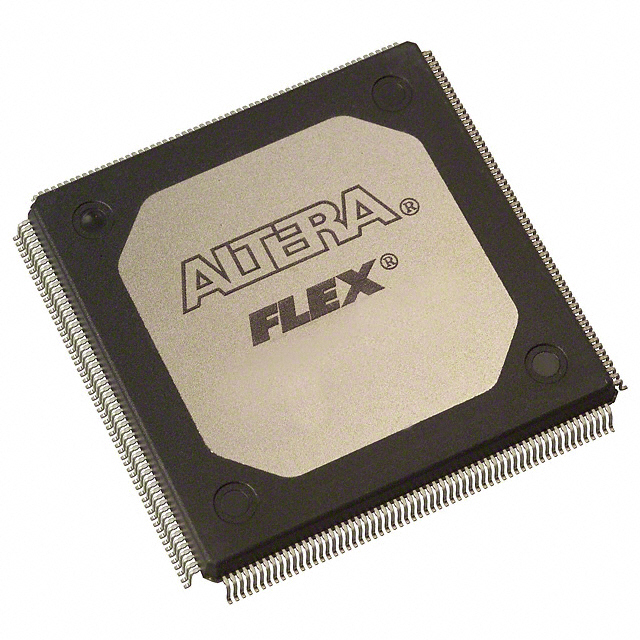

EPF10K20RC240-3
EPF10K20RC240-3


IC FLEX 10K FPGA 20K 240-RQFP

Data Sheet

0-1: $79.80
