Product Summary

The AT86RF231-ZU is a low power 2.4GHz transceiver for ZigBee, IEEE 802.15.4 and ISM applications. The AT86RF231-ZU provides a digital microcontroller interface. The interface of the AT86RF231-ZU comprises a slave SPI (/SEL, SCLK, MOSI and MISO) and additional control signals (CLKM, IRQ, SLP_TR, /RST and DIG2) .

Parametrics

AT86RF231-ZU absolute maximum ratings: (1) Storage temperature TSTOR: -50 to 150°C; (2) Lead temperature TLEAD: 260°C (T = 10s, (soldering profile compliant with IPC/JEDEC J STD 020B) ; (3) ESD robustness VESD: 4kV(Compl. to) , 750V (Compl. to) ; (4) Input RF level PRF: +14dBm; (5) Voltage on all pins (except pins 4, 5, 13, 14, 29) VDIG: -0.3 to VDD +0.3V; (6) Voltage on pins 4, 5, 13, 14, 29 VANA: -0.3 to 2.0V.

Features

AT86RF231-ZU features: (1) High Performance RF-CMOS 2.4 GHz Radio Transceiver Targeted for IEEE 802.15.4, ZigBee and ISM Applications; (2) Industry Leading Link Budget (104 dB) ; (3) Ultra-Low Supply Voltage (1.8V to 3.6V) with Internal Regulator; (4) Optimized for Low BoM Cost and Ease of Production; (5) Easy to Use Interface; (6) Extended Feature Set Hardware Support; (7) Industrial Temperature Range: -40 to +85°C; (8) Compliant to EN 300 328/440, FCC-CFR-47 Part 15, ARIB STD-66, RSS-210.

Diagrams

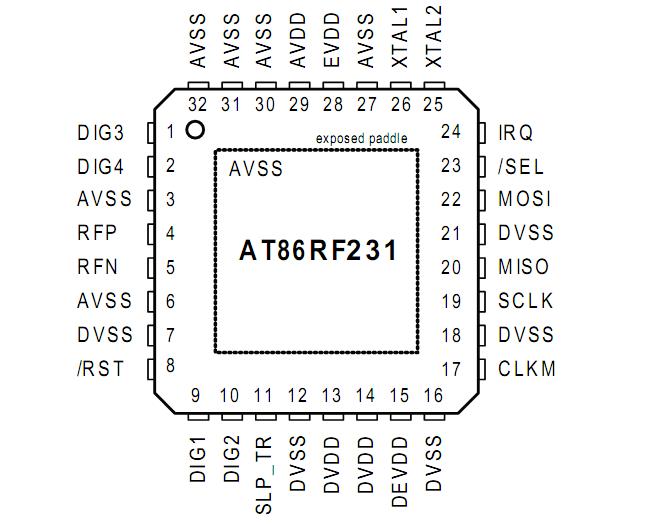

AT86RF231-ZU Pin-out Diagram
